Continuous Casting Machine From Sally

Continuous Casting Machine From Sally
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification: Slabs, Rounds, Billets
Steel Grade: Carbon Steel, Alloy Steel, Stainless Steel,Copper
Usage: Industrial
Voltage: 380V/220V/440V
Length: 3-12m
Weight: 160t

Product Description

60x60-R4m One machine one flow billet caster

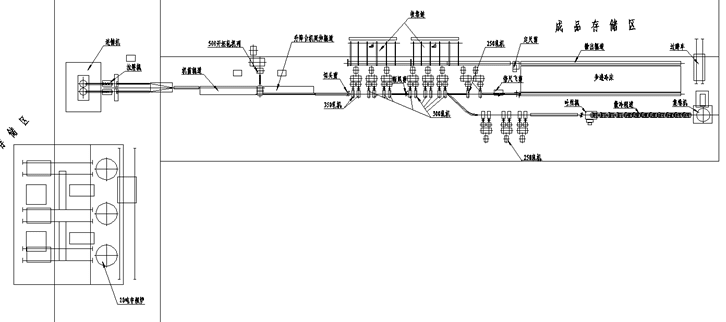

The finished product of this production line is hot rolled plain bar(commonly known as thread steel bar production line) and hot rolled wire rod. Divide into A70,B line production, main technological process : put the steel scrap in the medium frequency furnace melting into qualified molten steel, through continuous casting machine cast continuous casting billet; temperature around 950ºC continuous casting square billet feeding into 500 cogging roughing mill through conveyor roll, convey into finishing mill rolling into deformed steel bar finished product through five pass, after hot deformed steel bar into walking beam cooler cooling, process length nibbling shear, collecting, packaging, storage; steel wire production use B line, rolled pieces from A line K2 into 250 rolling unit continuous rolling, then through cooling zone, laying head, scatter-cold, collecting and coiling, packaging and into storage.


Sn.NameMain configuration and technical specificationQuantityUnitRemark
160X60mm crystallizerCNC processing inside water jacket, outside water jacket;
Copper pipe sealing ring;
Water seam width:4mm;water flow rate:10m/s
Copper pipe material:Cu-P;plating of lining:Cr
Copper pipe length700mm
1setStandard table plate

2First cooling systemAutomatically switch on the cooling water when crystallizer in place;
Flow regulating method:manual switch water supply,manual regulating flow;
Configuration:pressure gauge;related pipes,three direct links,brake valve,elbow, etc.
1set
3Mould vibration table

Vibration reducer
Ordinary half plate spring vibration table
Bearing,22212
Plate spring,1100X140X14
Basin angle gear reducer,regulating amplitude,power 5.5kw.
1tablestandard
4Secondary cooling systemDiversion box,valve;spring pressure gauge,three direct links,elbow, etc.
1

Set

5Secondary cooling arc directionLow roller water cooling diameter:158mm
Upper water cooling diameter:100mm
1Set
6

60×60 spray headerStructure type:arc stainless steel square tube
Divided into three sections;two cooling zero segment(crystallizer mouth);two cooling one segment,two cooling two segments.
Nozzle type:5265,water nozzle.
1Set
7Tension leveler

Roller,cooling bearing seat;AC variable frequency transmission.
Roller material:alloy forge steel,roll surface welding wear-resisting material. Turbine worm reducer.
1Table
AC motorPower 3.0KW, revolving speed:1500r/min3Table
Reduction box1,Cycloid reducer:transmission ratio i=9
2,Turbine worm reducer:transmission ratio i=29
3Table
Rotating jointStructure type:built-in.

Tension lever hydraulic cylinderCylinder diameter:125mm;Rod diameter:80mm.1Unit
Off billet hydraulic cylinderCylinder diameter:125mm;Rod diameter:80mm.1Unit
8Dummy bar fittingStructure type:flexible dummy bar,section size 80×120mm,dummy head material:alloy forge steel1Set
9Roller before cuttingStructure type:free short roll
Roller diameter:φ219mm
Roller length:260mm
1Set
11Roller after cuttingStructure type:shunt short roller,concentrate chain transmission
Roller gap :~
Roller diameter :φ219mm
Roller length:260mm
1Set
12Billet roller6m1Set
13Hydraulic pusher6m1Set
14Main hydraulic systemMotor:7.5KW1SetAutomatic 4 valves.
15Oil pumpModel:CB-31.5-FL181Set
16Electric systemTension frequency power:15KW
Oscillation frequency power:7.5KW
1Set


Our company is a big exporter of various kinds of steel and iron products, metal mineral.

One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.

Here are our steel products:

Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.

The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.

Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).

If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
