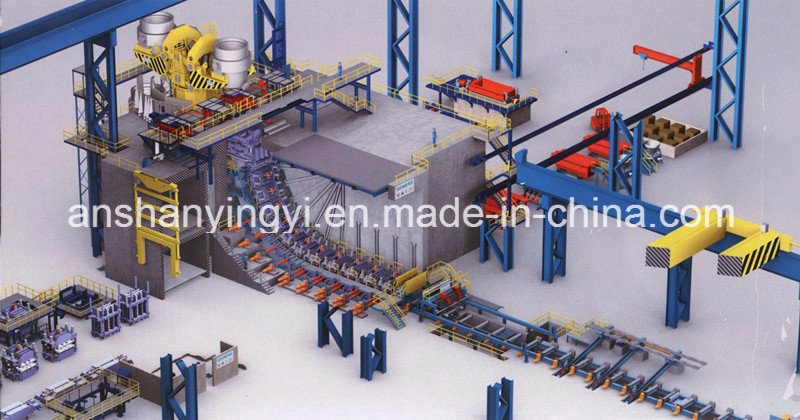

Three-Strand Steel Billet Continuous Casting Machine (CCM)

Three-Strand Steel Billet Continuous Casting Machine (CCM)
Price: US $ 5000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: CCM various
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Weight: Customized Dimension
Machine Voltage: 380V 440V
Machine Power: 100-150kw
Raw Material: Billet Slab Ingot
Capacity: 3000~12000tons/Year
Dimension(L*W*H): 2250X2160X1560mm
Warranty: 12 Months
After-Sales Service: Engineers Available to Service Machinery Overseas
Delivery Time: 30-45days
Place Of Origin: Liaoning, China
Casting Method: Special Casting
Casting Form Material: Metal
Casting Metal: Cast Steel
Casting Form Usage Count: Permanent

Product Description

I. Company Information

Our company is professional manufacturer of electric arc furnace, medium- frequency furnace steelmaking, secondary refining and continuous casting. We are also manufacturer of steel rolling production line including designing, manfacturing, installation, debugging and trial production. Meantime, our company can also undertake engineering consultation, engineering designing and engineer project contracting (Turnkey project).
If you have any demand about CCM (Continuous casting machine) and Die casting machine, please contact us, and we will provide you all the technical details. Hope that we can build cooperation and mutual benifits.

II. Continuous casting project
Continuous casting machine is the main product of our company. Over the years, we have accumulated advanced production technology and experience in caster of square billet, round billet, rectangular billet, shaped section and steel slab.
Specification of casting billet:
Square billet60×60~1000×1000mm
Round billetφ150~600mm
Rectangular billet120×350~220×480mm
Steel slab50×100mm  135~320×350~3000mm



III. Supply cope

1. On-line equipment list


No

Equipment name

Unit

Qty.

Remark

1

Ladle turret

PCS

1

80t capacity for each arm

2

Tundish moving car

PCS

2



3

Tundish

PCS

2



4

130sq.mm mould

PCS

4



5

Mould cover

SET

4



6

Oscillation device

SET

4



7

Spraying pipe and support

SET

4



8

Guide segment for secondary cooling water

SET

4



9

Steam exhaustion system

SET

1



10

Withdrawal straightening machine

SET

4



11

Dummy bar

PCS

4



12

Dummy bar head

SET

4



13

Dummy bar storage device

SET

4



14

Roller table before cutting

Group

4



15

Transmit roller table

Group

4



16

Discharge roller table

Group

4



17

Automatic hydraulic cutting machine

SET

4



18

Pusher

SET

1



19

Cooling bed

SET

1

Step by step

20

Overflow chute

PCS

8



21

Hydraulic station

SET

1



22

Secondary cooling water distribution system

SET

4



23

Spraying nozzle

PCS

400

Including 100 PCS for foot roller

24

Electrical and instrument system

SET

4



a

Electrical system







b

Local instrument system







25

Steel structure platform

SET

1






2,Mounting materials


No.

Equipment name

Unit

Qty.

Remark

1

Mounting materials

A lot

1



1.1

-- for electricity and instrument system



1



1.2

-- for hydraulic station



1



1.3

-- for cooling water distribution system



1






3,Auxiliary equipment


No.

Equipment name

Unit

Qty.

Remark

1

Mould test table

PCS

2



2

Drainage gun

PCS

4



3

Cutting gun

PCS

4
