Features

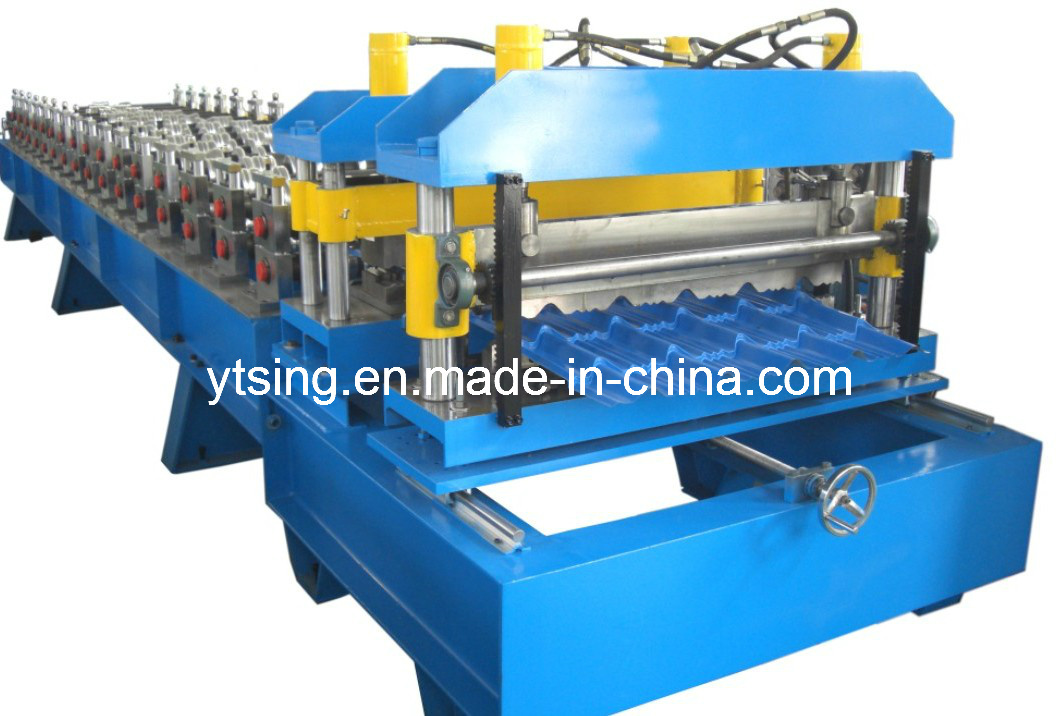

1. The roofing tile roll forming machine includes an uncoiler, roll forming unit, pressing unit and cutting unit.
2. The material thickness can be formed at 0.3-0.8mm.
3. Because of the pressing mold, the whole line speed of the roofing tile roll forming machine is about 6 m/min.
4. All the parts of the roofing tile roll forming machine are automatically controlled by PLC.
Application:
The products of the roofing tile roll forming machine are used as the roofing sheets of houses, factories, warahouses, garages, exhibition centers, cinemas, gardens, etc.
Configurations:
The roofing tile roll forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet, product run out table, and pressing unit.
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
We can also design many kinds of roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Number of Stations |
18stations |
|
Thickness |
0.3-0.8mm |
|
Main Power |
7.5Kw |
|
Dimensions |
Approx9m*1.4m*1.2m |
|
Forming Speed |
5-10m/min |
|
After Forming |
45#forge steel |
|
Decoiler Material |
#45 Steel Material |
|
Roll Forming Material |
#45 Steel base/40CR Steel HRC 48-52 Roller |
|
Cutting Material |
Cr12 Quenched 58-62 |
|
Punching Material |
Cr12 Quenched 58-62 or Cr15 Bearing Steel |
|
PLC |
PLC Panasonic-Touch screen Made in Taiwan-Transducer Yaskawa-Encoder Omron |
|
Bearing |
National Brand |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
