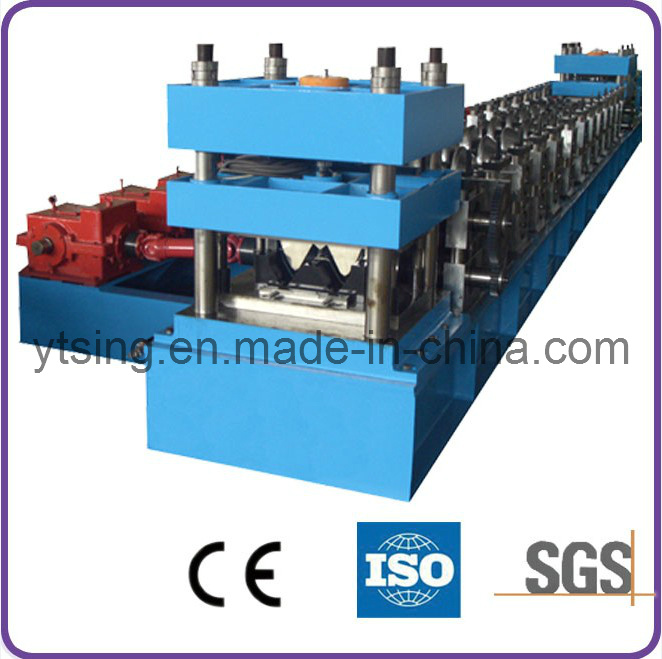

The guard rail roll forming machine can be designed as two or three wave profiles in one machine, you
Just need to add some stations at the end of the machine. The products of the guard rail roll forming
Machine are used as guardrails for the both sides of the highway.
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Daisy
Tel: +86-024-8621-3062
Mobile: +86-138-4132-5147
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Specification |
|
|
Model |
YD-85/310 |
|
Number of stations |
19 Stations |
|
Thickness |
1.5-3.0mm |
|
Main power |
22-30kw |
|
Dimension |
Approx 13.5m*2.7m*1.6m |
|
Forming speed |
10-18m/min |
|
Machine Configuration |
|
Decoiler |
|
Feeding & Leveling Applicator |
|
Punching |
|
Roll Forming Unit |
|
Hydraulic Cutting |
|
Output Table |
|
Specification |
|
|
Model |
YD-85/310 |
|
Number of stations |
19 Stations |
|
Thickness |
1.5-3.0mm |
|
Main power |
22-30kw |
|
Dimension |
Approx 13.5m*2.7m*1.6m |
|
Forming speed |
10-18m/min |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
