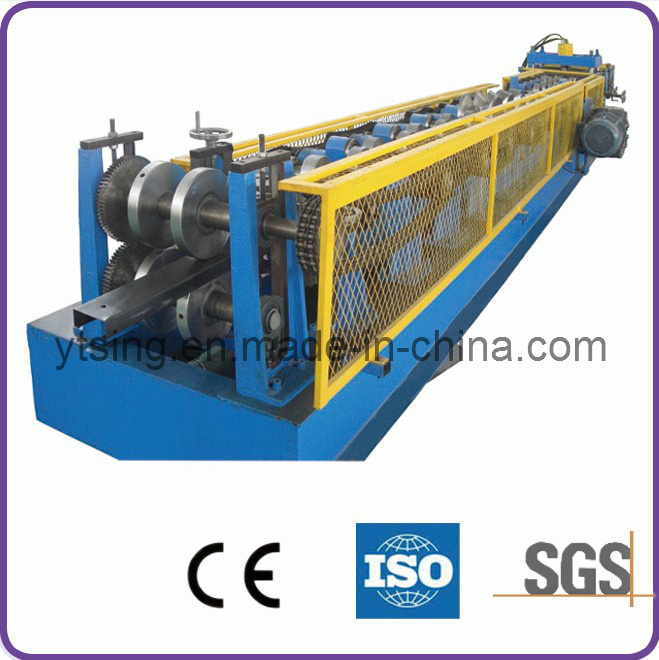

The C/Z purlin quick interchangeable machine uses a special structure. The rollers for C and Z formers can be changed very quickly without dismantling any parts. One machine can produce all specification of
C and Z purlin. The width of the purlins can be automatically adjusted by PLC control system. The cutting
Unit of the C and Z purlin quick forming machine uses pre-cut or post cut.
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Specification |
|
|
Model |
YD-100-300 |
|
Number of stations |
20 Stations |
|
Thickness |
1.5-3.0mm |
|
Main power |
15Kw |
|
Dimensions |
Approx 11m*1.8m*1.8m |
|
Forming speed |
15-20m/min |
|
After forming |
100-300mm |
|
Machine Configuration |
|
Decoiler |
|
Feeding & Leveling Applicator |
|
Roll Forming Unit |
|
Hydraulic Punching |
|
Hydraulic Cutting |
|
Output Table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
