A)YX-415 roll forming machine:
(1)Size: 19000mmx1700mmx1630.
(2)total weight: About 12, 000kg
(3)controling system: PLC.
(4)main motor power: 5.5kw Hydraulic station power: 2.2kw.
(5)working speed: 10000-12000mm/min
(6)hydraulic pressure: 10-12Mpa
B)YX-192guard rall forming machine:
(1)suitable raw material: Q235A galvanized steelsheet; Thickness: 2-3.2mm
(2)total motor power: 28.2Kw mainmotorpower: 15kw; Hydraulicstation power: 11kw; Leveling motor power: 2.2kw
(3)forming speed: 6-8m/min
(4)material of forming rollers: GCr15bearing steel with quench treatment
(5)number of roll stands: About 17stands
(6)material of cutting die: Cr12mould steel with quench treatment
(7)control system: MintsubishiPLC
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|

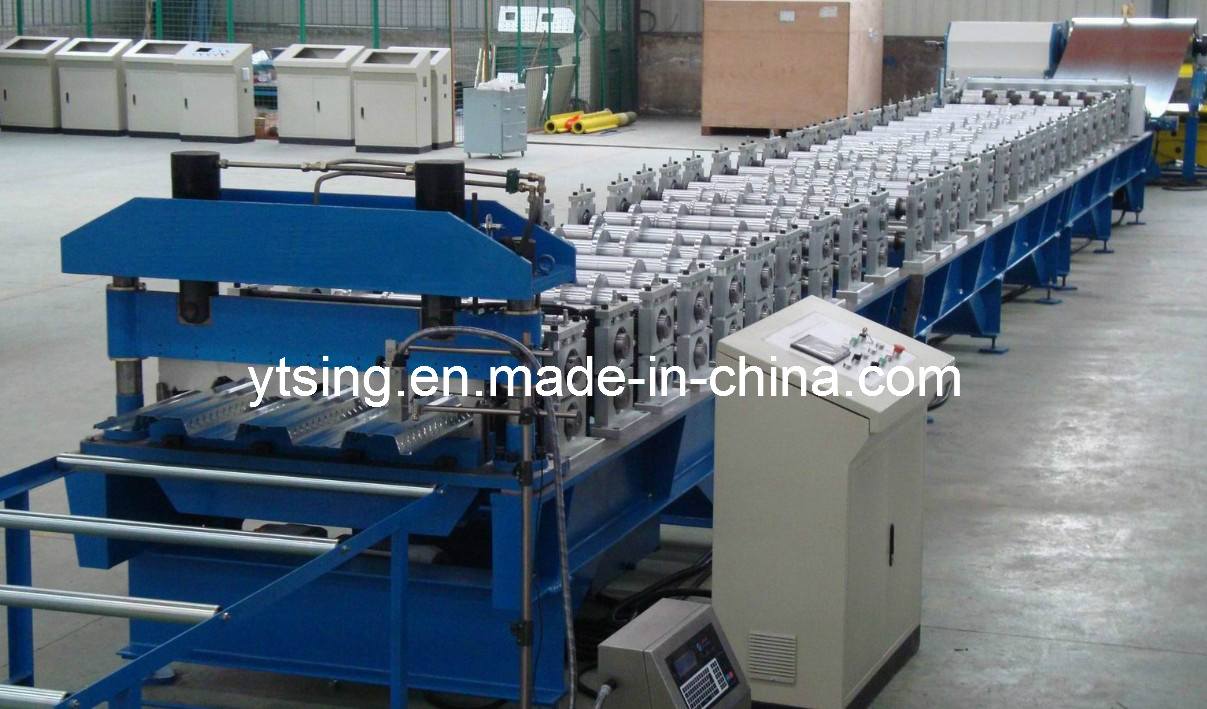

12-16m/min Trapezoid Wall Panel Roll Forming Machine |
|
Number of Stations |
13 sets |
|
Thickness |
0.35-0.8mm |
|
Main Power |
5.5KW |
|
Shipment Packing |
one 40FT container |
|
Forming Speed |
12-16mtr./min(Not include shear) |
|
Machine Frame |
H-BEAM Frame |
|
Productivity |
Roof and wall panel as the drawing |
|
Man Power Required |
One operator with one assinstant |
|
Set Up time |
15 mins |
|
Working Hours per Day |
8 to 16 |
|
Line Direction |
Left to Right While Facing Operator Panel |
|
Overall Machine Length Required |
11.0M |
|
Approximate Machine Height |
1.6M |
|
Complete Line Consist Of |
|
Passive/Hydraulic Single/Double Uncoiler |
|
Infeeding Applicator |
|
Roll Forming Machine |
|
Hydraulic Stop to Cut |
|
Output Table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
