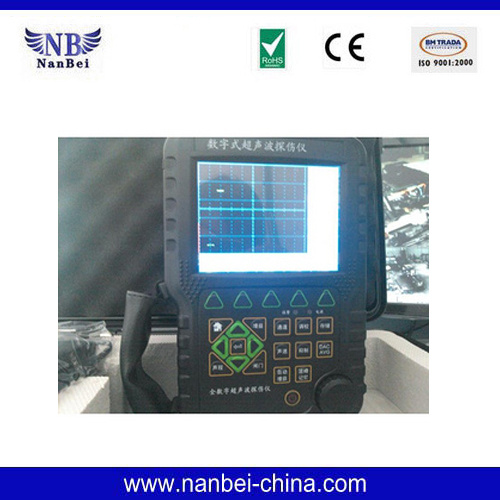

LCD Digital Ultrasonic Flaw Detector

LCD Digital Ultrasonic Flaw Detector
Price: US $ 3968-45000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: NB3600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Ultrasonic Flaw Detector
Gain Range: 110dB
Frequency Wideth: 0.4~20.0MHz
Detect Range: 0.3~4000.0mm
Surplus Sensitivity: >50dB
Resolution: >40dB
Dynamic Range: >30dB
Horizontal Linearity: <0.1%
Vertical Linearity: <3%
Noise Level: <10%

Product Description


Quick Details

Place of Origin:

Henan, China (Mainland)

Brand Name:

Nanbei

Model Number:

NB3600

Power:

Electronic

Usage:

Auto Testing Machine

Detection range of ultrasonic flaw:

0.5~6000mm


Packaging & Delivery

Packaging Details:
Export standard packaging for ultrasonic flaw.
Delivery Detail:delivery in 3-10 days


Specifications
ultrasonic flaw:
1,automatic production DAC curve
2,long working hours
3,automatic display report

Product Description
The ultrasonic flaw detector can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate,evaluate and diagnose.

Widely used in laboratory, hospital special prosecutor, shipbuilding, oil and gas equipment,aerospace, defense, chemical, electric power, iron and steel, metallurgy, railway, automobile manufacturing, machinery, boilers, pressure vessels, special equipment, oil pipelines, construction, mold manufacturing and other industries.

Our forgings, castings, plate, pipe, bar, steel alloy type parts of the testing has a wealth of experience.

Functions and features:

1, Automatic test probe zero velocity and K values.

2, Automatic production DAC curve.

3, Automatic displays the flaw echo position (level, depth, distance, when the value).

4, Automatic shutter sound and light alarm (door position, the door width, door height freely adjustable).

5, Free switching 100 channel group testing process.

6, Automatically generate standard inspection report.

7, Free to input the industry testing standards report.

8, All imports of original motherboard devices.

9, Large-capacity storage, 5000 testing data space, data is not lost after power.

10, Long working hours, no memory effect efficient lithium battery, ensure that continuous working time is more than six hours.

11, Channel password, testing personnel can be stored their inspection channels, permanently kept not is modified by someone else.

12, Built-in communications software, connect the network cable directly to your computer to print and save all testing data.

13, Two-way communication, users can edit their own inspection report format.

14, Testing waveforms save time dynamic video.

Technical parameters:


Gain range

0-120dB,0.1,2.0,6.0dBStepping

Frequency Range

0.4~20.0MHz

Detection range

0.5~6000mm

Sensitivity margin

>62dB

Resolution

>40dB

Dynamic Range

>32dB

Horizontal linear

1m within 0

CUI linear

<3%

Pusler

Variable pulse generator

Work Mode

Single / Dual Penetrate

Damping

50/100/400Ω automatically match

Detection method

Half-wave / Radiofrequency

suppression

0 to 99% linear inhibition

Display ambient temperature

-20 ~ 50 °C

The charger

220 ~ 240V AC input

Operating Voltage

7.4V ± 0.3V

Size

215 * 175 * 33mm

Weight

1kg


ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT Co., Ltd is affiliated to NANBEI INTERNATIONAL GROUP LIMITED. It is the famous integrated equipment supplier in Chinese equipment field. After years of development, it has become a research, development, production and sales as one of the independent legal personality persified technology group. The headquartered is in ZHENGZHOU (International Air Port Area), China. And it also has the office in Beijing, Shanghai, SHENZHEN, and HONGKANG China.

The main products: Lab instruments, life science equipment, ice machines, electrochemical analysis instruments, optical instruments, physical testing instruments and equipment, environment equipment/flow meter, industry-specific equipment, drug testing equipment, seeds, equipments, agriculture and food equipment, petroleum equipment, coal equipment, surveying instruments, construction equipment, road equipment, geological equipment, reagents supplies, weather instruments, medical equipment, environmental equipment, mining machinery, boilers and other products. Persified business model, professional technology, high-tech equipment, in the course of business with an excellent work ethic, excellent business reputation, high quality products and perfect after-sales service has won the trust and support. We are trying to set up the world' S major regions and service agents at the company is being in the Asia Pacific region Equipment Industry-leading brands.

The involved products of our company are throughout the universities, research institutes, factories and enterprises, chemical and pharmaceutical, medical, inspection, agriculture, food, super, metallurgical mining, construction, petroleum, roads and bridges and other industries, products with superior performance. Based on fast attentive service, great value, exports more than 120 countries and regions, out products are alike by domestic and foreign merchants. In the production process, we strictly enforce product manufacturing requirements. And we have established a complete quality management system, so the product quality has a reliable guarantee.

We honestly recruit the majority of overseas agents and dealers, who are interested please contact us!
