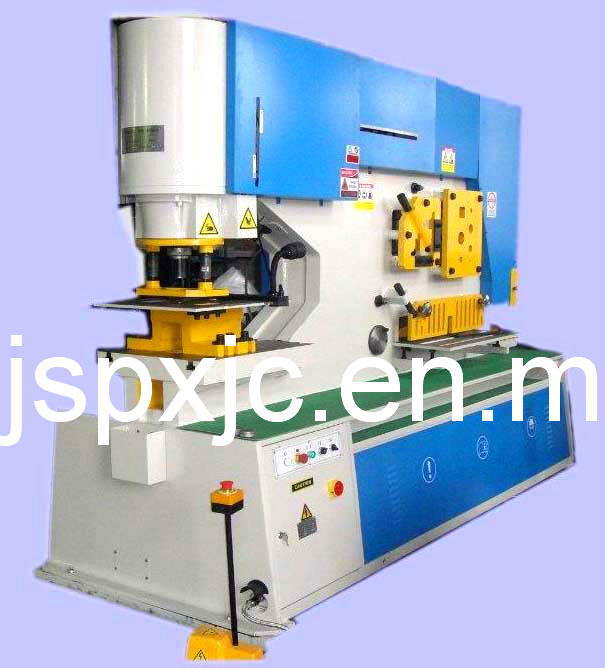

Dual Cylinder Hydraulic Universal Multi-Function Punch Notch Machine (Q35Y-40)

Dual Cylinder Hydraulic Universal Multi-Function Punch Notch Machine (Q35Y-40)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: Q35Y-40
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color And Voltage: According to Customer's Request
Machine Type: Hydraulic Shearing and Punching Machine
Certificate: ISO&CE
Oil Drum: Double Oil Drum
Power: Hydraulic Ironworker
Processed Material: Carbon Steel, Stainless Steel, Alloy
Model: Q35y-16, Q35y-20, Q35y-25, Q35y-30

Product Description

Multi-Function Ironworker punching/shearing/notching/bending machine:

This hydraulic Ironworker machine is combined punching and shearing machine, can punch, shear, notch and cut materials such as plate, square bar, round steel, angle, round bar, channel, shear the range, punching and die cut, and equipped with shear block material device.

Q35Y series hydraulic ironworker can also bend the plate below 300mm. with its multifunction, cutting machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety, function, capability and maintenance.

Optional Fittings For Hydraulic Universal Multi-Function Ironworker Machine Q35Y-20:
1. ATOS ATOS hydraulic system
2. Automatic back gauge
3. ABB ABB motor
4. ATOS ATOS pump

Features:

1. Punching Station
Full range of universal punches and dies are available. Unique style of Q35Y hydraulic Ironworker allows for large angle iron punching and large channel punching.

Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard equipment. Quick change coupling nut and sleeve for rapid replacement of change.

2. Round and Square bar shear has multiple holes for a variety of sizes. Adjustable holddown for clean square cutting. Optional Channel and Beam shears available with this ironworker machine.

3. Large heavy duty knobs
Precise square bar cutting
Large strong guarding for maximum safety
Mitering with large standard squaring arm

4. The angle ironworker machine has the ability to cut angle iron at 45 degrees both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.

5. Diamond shaped blade for quality cuts and no material loss with minimal deformity. Forty five degree miter cut both top and bottom leg for a picture frame corner.

6. Notching Sstation
Unique design allows for unsurpassed cutting of angle and flat bar. Electrically interlocked safety guard for maximum operator safety. Ventilated guard for maximum operator visibility. Three guaging stops for precise positoning.

7. Three foot electronic back guage supplied as standard equipment. Fine adjustment allows for precision cuts. Fully protected electrical harness for safety and reliability. Large contact button for maximum productibity.

8. Flat Bar Shearing Station
Easily adjustable hold down with good operator visibility for accurate cutting. Large 15" squaring arm with inlaid scale as standard equipment.

Specially contoured anti-distortion blade for quality cuts. Lower blade has four usable edges. Allen head set screws allow for easy gapping of the hydraulic ironworker machine. No shimming is required.

Technical Data

Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Working pressure (kn)

550

750

1100

1400

Max. cutting thicknessmm

16

20

25

26

Max. cutting length(mm)

400

480

600

600

Tensile strength of sheet metal

(N/mm²)

≤450

≤450

≤450

≤450

Shear angle(deg)

7

8

8

8

Stroke of ram(mm)

80

80

80

80

stroke times(min)

8

8

8

8

Depth of throat(mm)

300

355

400

600

Max .Capacities(mm)

25×16

30×20

35×25

38×28

Main motor(KW)

4

5.5

7.5

11

Length of machine tool(mm)

1640

1860

2355

2680

Width of machine tool(mm)

730

790

960

1040

Height of machine tool(mm)

1770

1900

2090

2300

Weight of machine tool(kg)

1700

2200

4800

6200

PUNCHING  METRIC(mm)

Max. Capacities

25×16

30×20

35×25

38×26

Max. Stroke Length

80

80

80

80

Throat Depth Standard

305

355

400

600

Working Height

1030

1084

1142

1209

SHEARING

Flat  Bar

250×16

330×20

300×25

355×30

Alternative

400×8

480×10

600×16

600×20

Blade Length

380

485

620

610

Working Height

890

894

851

897

ANGlE CUTTING

At 90°cut

125×12

140×12

160×14

180×16

At 45°Mitre

70×10

70×10

70×10

70×10

Working Height

1130

1139

1200

1220

SECTION CUTTING

Round / Square Bar

45

50

60

65

Channel / Beam

130×65

160×88

180×84

200×100

Tee

90×12

90×12

90×12

90×12

NOTCHING

Material Thickness

10

13

14

16

Width

57

57

57

57

Depth: Vee -Rect.

60-90

60-90

60-90

60-90

Working Height

890

883

886

898
We are a hi-tech enterprise in Jingjiang. We are mainly specialized in the research and development of kinds of metal workers.

Products Include: Iron worker, hydraulic iron worker, electro-hydraulic synchronized CNC press brake, hydraulic punching, hydraulic press brake, bending machine, hydraulic shear, hydraulic shearing machine, hydraulic cutting machine, hydraulic swing beam shear, hydraulic guillotine shearing machine, autofeed hydraulic shear, hydraulic shear with pneumatic support device

Our ironworers, which have been sent to Australia, are all equipped with ATOS pump valve of Italy, and Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.

Jiangsu Puxin Machinery Manufacturing Co. Ltd is the production of various types of forging press machines and equipment professional firm, the company passed the ISO9001: 2000 quality system certificatian and export of electromechanical products through a national license certification and CE certification.

Company has first-class professional and technical personnel, strong technical skills, complete testing means. Our long-term accumulated experience and lessons to broad areas of advanced technology to constantly adjust product structure, to market the most sophisticated forging machinery. Selling products, a large number of exported to Europe, the Middle East and Southeast Asia, has long been Chinese and foreign custmers alike.

Each of the company manufacturing parts for each machine in a safe, functional, maintenance, and performance in line with the highest quality requirements, its design based on use of human and machine control based on the quality and reliability is our top priority. The company will adhere to the people-oriented, science as a precursor to new business ideas, science service, customers return to the company, and our aim is to"honesty, quality first. "with yhe company's products, you will have the strength and the future!
