Die Casting
| Price: |
Negotiable |
| Min Order: |
1 |
| Prod Model: |
6551 |
| Markets: |
North America,Eastern Europe,Mid East,Western Europe |
| Molding Technics: |
Pressure Casting |
| Casting Method: |
Special Casting |
| Deformation Temperature: |
Low |
| Molding Style: |
Die-Casting |
Product Description
1) Production, Low Pressure Casting
2) Material, Aluminum alloy A356-T6
3) Surface finish, Shot + passivation
4) Machining, Milling and Drilling
5) Casting Equipment, J45
6) Quality system, ISO9001 available
7) Product Dimensions, 220MM x 215MM x 150MM
8) Product Thickness, Min, 3MM Max, 20MM

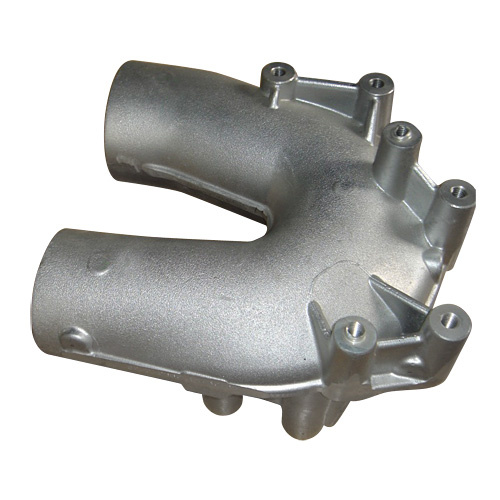

This product is used for the cooling system of the auto parts(Truck). We choice the low-pressure casting as it is filled with the high-intensity pressure. The main requirement of the product is the control of the density and dimensions. So we have the control procedures as follows,
1. First of all, it is the control of the raw material. We will take the spectral analysis and ensure the accuracy of the material.
2. We will conduct the first article inspection, inspection and the end pieces of test. We will detect the X-ray detector during the inspection process, and the testing standards according to ASTM E505A1.
3. It is the same as the inspection procedures in the production of machining processes. We can conduct the CMM(Coordinate Measuring Instrument ) and control the dimensions.
Lastly, I really believe that we can meet your requirements, as our professional and we are strict with the quality. If you are interested in any products of our factory, please send the detail drawing and samples of the products to us. We will offer you the most competitive price and perfect service.
|
Ingredient List, |
|
Alloy Code |
Chemical Composition (%) |
|
Si |
Cu |
Mg |
Fe |
Mn |
Zn |
Ni |
Sn |
The Sum of Other Elements |
|
7.5-9.5 |
3.0-4.0 |
≤0.10 |
≤1.3 |
≤0.50 |
≤3.0 |
≤0.50 |
≤0.35 |
≤0.50 |
NINGBO ZHENHAI BOLANG METAL PRODUCT FACTORY was established in 2002. We are located at Guisi Industrial, Zhenhai District, Ningbo City, Zhejiang Province, We specialize in Aluminum die casting, Zinc die casting parts, CNC machining parts as well as all kinds of surface finished, Our main products include computer accessories, furniture accessories, lighting, products, heat sinks, automobile components, electronic components etc. Our products are mainly exported to countries such as USA, Europe (England, Germany, Italy, Belgium etc), Asia (Japan, Korea etc), We has established standardized enterprise management system, it has got quality system certification ISO9001,
We had rich experience and capability for following material and surface finished, the materials are DIN: AlMg5Si, AlSi10Mg, AlSi9Cu3, AlSi12Cu, AlSi6Cu4, AlSi10Cu, AlSi8Cu3.
ASTM: A360, A383, A384, A319, A413, A380. GB\T: YL-1O4, YL-102, YL-107, YL112, YL113, YL303.
JISH: ADC-3, ADC-10, ADC-12, ADC-1, ADC-6.
The surface finished we made are chromed plated, painting, powder coating, anodized, Sand blast, etc
The main equipments of our company including 3 sets of High-performance die casting machine, with different tonnage ranging from 180T to 550T, one of them is fully automatic die casting machine, including, as well as 2 sets CNC processing centers imported from Japan, over 8 sets of CNC lathes. In our testing center, we possess 1 sets of high-precision CMM and other advanced testing devices such as spectrograph, tensile force testers, roughness measuring instruments and etc.
Based on the strategy of "global development" and our core value of "win-win cooperation", we have successfully established long-term business relationships with our clients and partners with good quality and credibility. With strict quality controlling measures and strong technology inputting ability, we have won a good reputation among our global customers. Welcome yours to visit our factory anytime
What We Do
Bolang factory mainly deals with aluminuim castings of the following products, covering: Metal parts processing, automobile spare parts aluminium castings, aluminium metal mining machinery, , electrical products, instrumentation aluminium castings, electrical tools, pneumatic tools, and other agricultural machinery. We assure the best quality to our customers.
