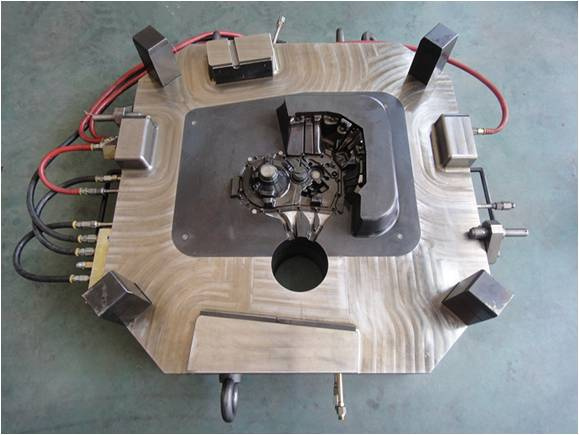

Clutch Housing Die Casting Die

Clutch Housing Die Casting Die
Price: US $ 120000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Application: Communication Industry
Material: Steel

Product Description

Product Introduction:
The Clutch Housing die casting die or mold is a closed vessel into which molten Aluminum is injected under high pressure and temperature, then rapidly cooled until the solidified Cluth Housing part is sufficiently rigid to permit ejection from the mold.

Properties:
Products: Clutch Housing die casting die
Products for Customer: Renault
Number of Cavities in the tool: 1
Machine Size die will run in=2500T
Cavity Steel: DIEVAR
Retainer die steel: P20
Cooling: Water/Oil Cooling
Demoulding: Hydraulic Slides or Mechanical Columns Service life: 100,000

Aluminum Die Casting Mold Product Data

Item

Description

Die casting mold
Parts

Die Casting Mold Products Model

XinLinMold

Die Casting Mold Products Molding technics

Die casting mold

Part material:

ADC12,A380, ,A390
and many other aluminium alloy are all acceptable., Magnesium alloy

Die Casting Mold Products Dimension

As drawings or samples

Die Casting Molds

Die Casting Mold Cavity

Single or Multiple

Die Casting Mold Material

H13, DIEVAR, 8407, SKD61,
45#steel, etc.

Die Casting Molds
Heat treatment

Hardened, Nitriding

Die Casting Molds
Hardness

HRC50~55

Die Casting Molds
feature

Advanced design, Novel structure, High precision,
Quality materials, Long lifetime, Short delivery time

Die Casting Mold Making Equipment and
Die Casting Moulds Checking Machine

CNC precision Machining, Die Casting Moulds engraving machine, CNC forming machine,
CNC turning, EDM, Linear cutting machine, Die spotting machine(100~300T),
Die casting machine(180T~800T), Lathe, Grinding machine;
CMM, Material detector, Hardness test device, spectrograph,etc.

Die Casting Mold Design Software

CAD, UG, Pro/E, JSCAST of Japan,, etc.

Die Casting Molds
Quality certification

ISO9001:2008

Die Casting Moulds
Advantage

Die Casting Molds
Quality

Insist on making every detail carefully always

Die Casting Molds Price

reasonable and competitive price

Die Casting Molds Delivery Time

Never later than the delivery time in contract

Die Casting Molds Service

1. 6X8 hrs Helpline
2. Commissioning
3.Training
4.Technical On-Site Support
5.Repairs
6.Spare Parts Distribution
7.Tele-service
8.Condition of your machine
9.Maintenance

Die Casting Molds R&D

Plentiful experience and skillful technique on die casting

Die Casting Molds Team

United and positive team


Aluminum Die Casting Mold Making Process. How to make die cast molds?

1.R&D

We support customer R&D. Make the files or improve the design if you needed.

2.Negotiation

the quality, price, material, delivery time, payment item, ect.

3.Place an order

according your own design or you chooses our design.

4. Mould

1. Mold Design
2. Mold Making
a. CNC Machining
b. Cavity Heat Treatment ( Quenching)
c. Grinding
d. CNC Fine Machining
e. EDM (Electron Discharge Machining)
f. WEDM(wire electrical - discharge machining)
g. Cavity Polishing
h. Assembly Mold, Mold Spotting
3. Trial Mold
4. Mold Delivery

5. Sample shoot

If the first sample come out is not satisfied customer, we modify the mould and until meet customers satisfactory.


6.Products in store

If your quantity is beyond our storage, we will provide lead time to you.


7. Delivery

Delivery goods by sea or by air, according customers requirement.

Ningbo Beilun Xinlin Electromechanical Mould Co., Ltd. Is located in Chunxiao, Beilun, Ningbo where has a world-famous port and is well-known as 'Land of Die-casting Moulds'. We have two plants, one is in Chunxiao, the other is in Daqi High grade Mould park.

The company was founded in 2003 and in the same year it passed the strict certification of ISO9001 quality management system. The company has more than 20 senior technical personnel and specializes in design and manufacture of various precision aluminium, magnesium and vacuum die-casting moulds and also has a production capacity of 200 sets of medium and large die-casting moulds annually.

Now the company has successfully provided many sets of die-casting moulds as support parts for a number of foreign-funded enterprises in China, including GF and SEW in Suzhou, BSH and ZF in Nanjing, Sensus in Yangzhou, WABCO in Jinan and BorgWarner and ABB in Beijing. Also the company's die-casting moulds have been exported to many foreign companies such as Ariston in France, Polaris in USA and TVS in India.

Hardworking makes us be excellent and strictness makes our clients be satisfying. We will keep on improving our work in order to exceed our customers' expectations.
