![](/proimages/44f3j00NaFTohWtJpkP/aluminium-alloy-rod-continuous-casting-and-rolling-line-ul+z-1500+255-14-.jpg)

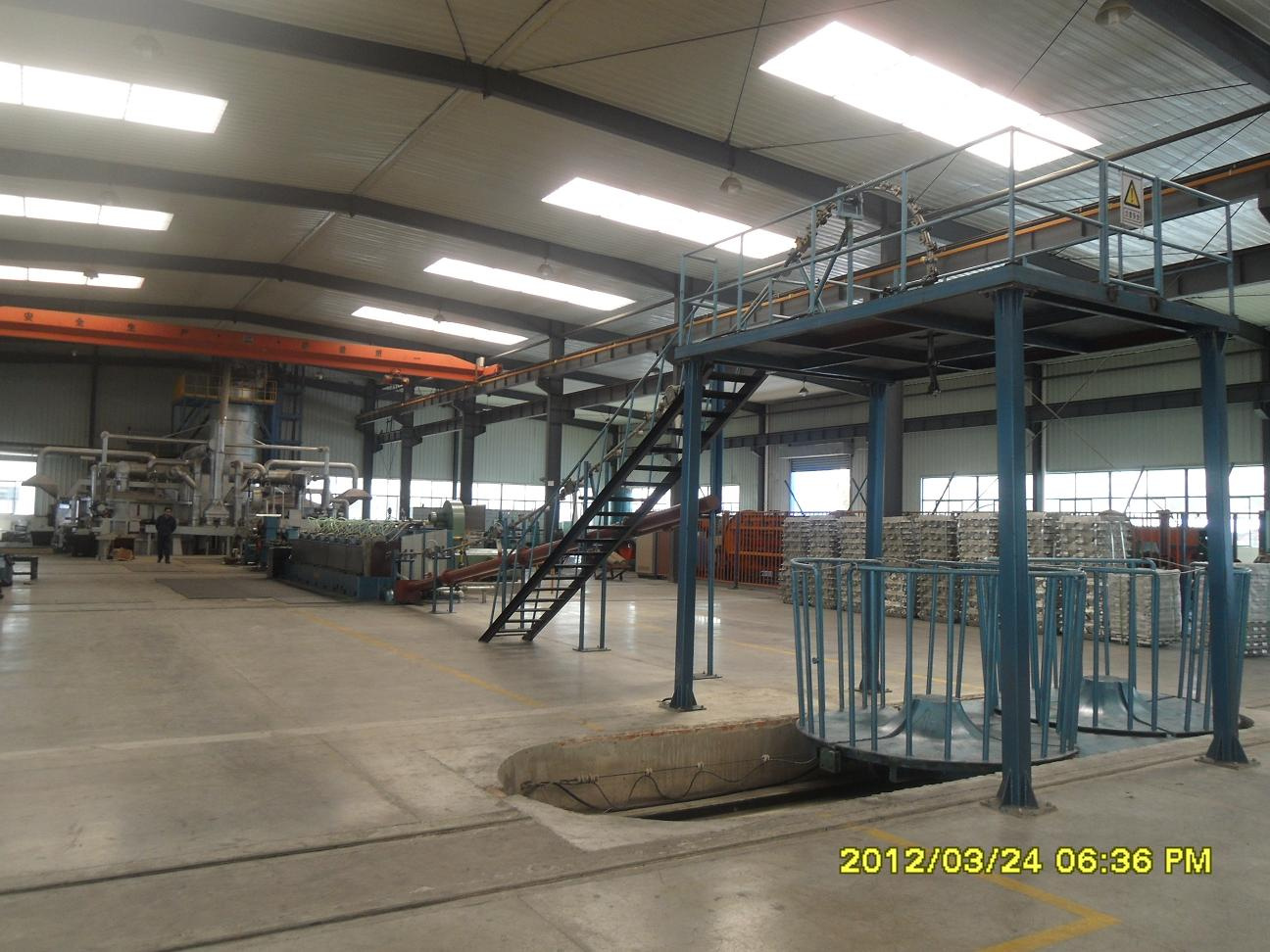

The line is designed to produce aluminum rod or aluminum alloy rod by means of continuous casting and rolling, the material is pure aluminum ingot, electrolytic molten aluminum or aluminum alloy, and the produced rod diameters are9.5mm,12mm and 15mm.* The Continuous Casting Machine possesses the patent right(the patent No. Is: ZL99232169.7);
* The drive line adopts all-digital speed adjusting of DC motor;
* The Grystallization wheel is H-type, because of the cooling from four sides, the casting ingot possessed the compact and regular construction;
* Particular rolling method which combines the 2-high mould with 3-high mould.
* The line has function of continuous quenching and fast cooling.
Melting furnace | Shaft furnace | Melting rate:5t/h |
Holding furnace | Hydraulic tilting-type | Capacity:2×9t |
Filter & degassing device | Treatment gas | Nitrogen or Argon |
Treatment capacity | 30~100kg/min |
Degassing efficiency | 50~70% |
Container capacity | 440kg |
Casting machine | Casting ring dia. | Φ1500mm |
Casting bar speed | 8~12m/min |
Casting bar section | 2320mm² |
Water consumption | 100m³/h |
Accessory shearer | Motor for casting ring | 4kW(DC) |
Max. shearing force | 15800kg |
Max. shearing stroke | 68mm |
Straightening machine | No. of straightening roller | 5 |
Induction heater | Output frequency | 350Hz |
Output power | 300kW |
Water consumption | 15m³/h |
Rolling mill | 2-high mould in rough rolling stand |
|
3-high mould in finish rolling stand |
Outlet rod dia. | Φ9.5mm |
No. of rolling stand | 14 |
Rollers’ dia | Φ255mm |
Finished rolling speed | 4~6m/s |
Production capacity | 2.6~4t/h |
Center height | 902.5mm |
Main motor | 355kW(DC) |
Emulsion consumption | 60m³/h |
Rod quenching device | Rod quenching tunnel | 8 |
Outlet rod temperature | <100°C |
Water consumption | 60m³/h |
Twin-coiler | Pulling speed | 6.94m/s |
Pulling motor | 7.5kW(DC) |
Coil’s size | Φ1500×Φ2300mm |
Laying head motor | 4kW(DC) |
Collecting basket | Φ2300×1300mm |
Coils’ weight | 1500~1800kg |
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
