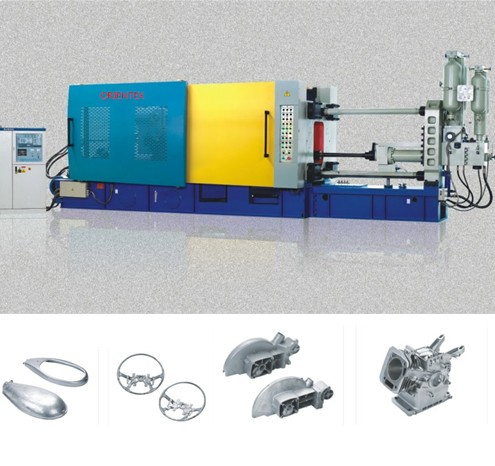

Prod Model: |
OTD-C2500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Die Locking Force: |
10000kn |
Product Description
Main specifications and parameters
Die locking force
25000 KN
Space between tie bars
1500*1500 MM
Tie bar diameter
Φ?310 MM
Die thickness(Min-Max)
750~1800 MM
Locking stroke
1500 MM
Ejection stroke
300?MM
Ejection force
750 KN
Injection force
1700?KN
Injection position
0 , -400 MM
Plunger diameter
140?MM
160 170?MM
150 MM
180 MM
Injection weight
30.5?KG?
40.1??45.4KG
35.1?KG
50.9?KG
Casting pressure (Intensifg.)
110?Mpa
84? 74Mpa
96?Mpa
66?Mpa
Casting area
2272?CM2?
2976?3378CM2
2604?CM2
3787?CM2
Max.Casting area (40Mpa)
6250?CM2
Plunger penetration
450?MM
Casting flange diameter
Φ280 MM
Height of pressure chamber flange
30?MM
Injection stroke
1050?MM
Dry cycle
28?S
System working pressure
16 Mpa
Motor power
55+75?KW
Oil tank capacity
3800 L
Machine weight
195000 KG
Machine dimensions(L*W*H)
14.7*4.9*5.0 M
Mold Size
Orientex Engineering Co., Ltd is a powerful group integrates four branches together and each branch and subsidiary supports each other in the other side of the field. Generally introduction is Luxury Yacht, Jet ski, Power ski, Gokart, Jet boat Paper Pulp Molding Production Line, Die Casting Machine and some other machines relate to food, metal and plastic.
There are 8 branches located in Jiangsu Province, Shangdong Province, Zhejiang Province and Hunan Province, covers an area of 800000 square meters, with 120 engineers and 600 workers around these factories. Besides, we cooperate with Sijin Machinery, Sunbird and some other famous enterprises in China. We offer spare parts or we appoint projects building or producing together with these famous enterprises.
Orientex Engineering Co., Ltd also has an offshore account in UK, but we are running in China, our enterprise is always focusing on high technology running and helping customers building a satisfactory plant in local places. We grow our enterprise with our sincerity and based on strong high technology. We locate in China, we are in the orient, we hope to stands in the world with our right, trust and credity always. We are going to run a 100 years in the long term! !
Orientex are focusing on Luxury Yachts, Speed Yachts, Die Casting Machines, Pulp Molding Machines, Steel drum Making Machines, food processing machines and some other related machines. From 2006 until now, Orientex Engineering working with many machinery companies in China. And have the design together with our technicians, Orientex now are also supported by many machinery factories in China domestic. Together with its own manufacturing capacity and exporting experience, we serve customers to build a profitable running plant and factory design. Www. Orientextech. COM.
