Steel Corrugated Sheet Roll Forming Machine

Steel Corrugated Sheet Roll Forming Machine
Price: US $ 7000-10000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: can design it as customers request
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Warranty: 12 Month
Quality: Provide Technical Support for Whole Life of It
Type Of The Machine: Can Design It as Customers Request
Color Of The Machine: Can Painting It as Customers Request
Control System: Automatic Computer Control
Shearing System: Automatic Hydraulic Control
Type: Metal Rolling&Drawing Machine

Product Description

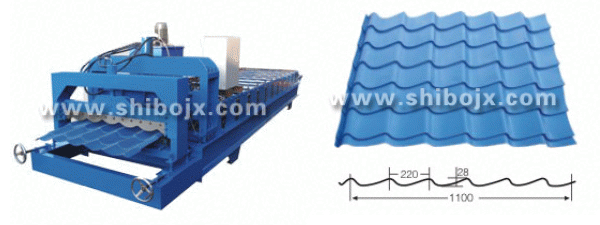

1100 Arc Bias Glazed tile roll forming machine

Forming size: 6000mm*1500mm*1200mm
Feeding width: 1250mm
Equipment weight: 7500kg
Material of shaft: 45#steel adjustable treatment
Out diameter of shaft: φ 80mm
Material of roller: Cr12, quenched treatment HRC58-60 °
Number of forming rollers: 11 rows
Main frame: 350 H steel
Thickness of medium plate: 14mm
Transportation system: Chain transportation
Thickness of chain: 1.2 inches
Main motor power: 7 KW
Pump station power: 3 KW
Forming speed: 8000-10000mm/min
Rolling thickness: 0.4-0.5mm
Forming  size 6000mm*1500mm*1200mm
Feeding  width 1250mm
Equipment  weight 7500kg
Material  of  shaft 45#steel  adjustable  treatment
Out  diameter  of  shaft φ 80mm
Material  of  roller Cr12,   quenched  treatment  HRC58-60°
Number  of  forming  rollers 11  rows
Main  frame 350  H  steel
Thickness  of  medium  plate 14mm
Transportation  system Chain  transportation
Thickness  of  chain 1.2  inches
Main  motor  power 7  KW
Pump  station  power 3  KW
Forming  speed 8000-10000mm/min
Rolling  thickness 0.4-0.5mm
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
