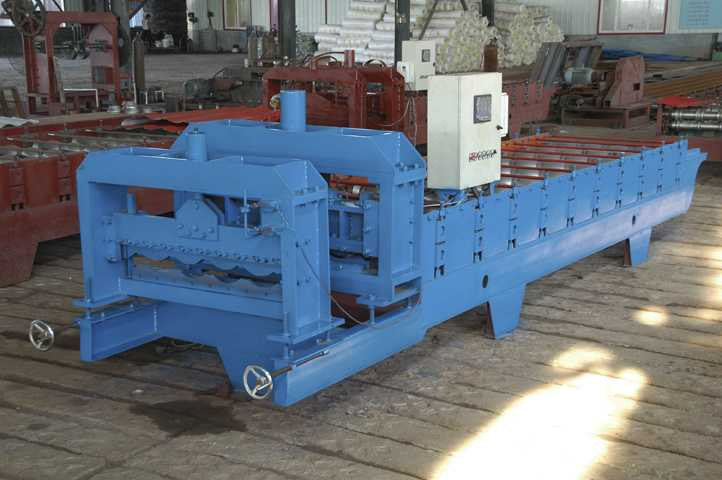

SB37-190-760 Glazed Tile Roll Forming Machine

SB37-190-760 Glazed Tile Roll Forming Machine
Price: US $ 10000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
SB37-190-760 glazed tile roll forming machine
Computer control system PLC control electric models Taiwan Weida
LCD 5.7 inches LCD
The working principle Automatic industrial computer PLC control system and accurate control the plate size, linking piece precision, rolling speed

Hydraulic shearing
Shear die material Cr12 High temperature quenching process
Hydraulic shear power 3 KW
Working principle The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#
Molding host Equipment production model SB28-207-828
Forming size 5500mm*1300mm*1500mm
weight 3500 kg
Main frame 250 U-bar steel
Number of forming rollers 13rows
Forming axial material 45# steel quench
Out diameter of shaft 70mm
Shaft material 45# steel
Driving mode Sprocket chain transmission
Thickness of chain 25.4mm
Equipment total power 6 kw
Forming speed 8-10m/min
Rolling thickness 0.3-0.8mm
  Feeding width 1000mm
Prod Model: SB760 glazed tile
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System: PLC Control System
Cutting System: Shearing System
Color: You Can Choose
Voltage: 380V 50Hz 3phases
Type: Building Machine
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
