SB24-200-1000 Glazed Tile Roll Forming Machine

SB24-200-1000 Glazed Tile Roll Forming Machine
Price: US $ 11000/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T

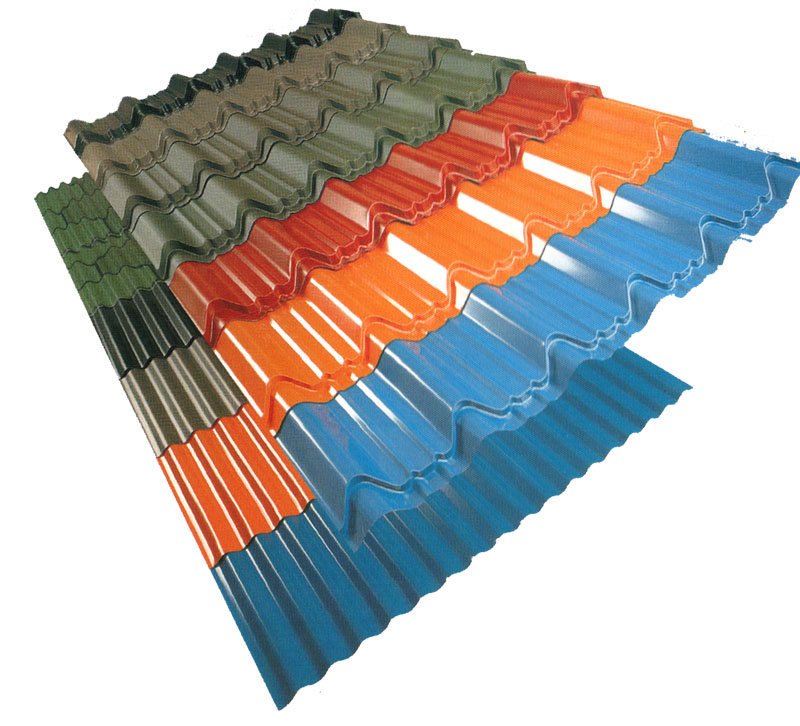

SB24-200-1000 glazed tile roll forming machine

2. Main Specification:
No
Technical Specification & Remark
1 Uncoiler (without motion) To bear 5ton color steel coil and feed material for forming machine and inner diameter is 500-- 508mm
2 Feeding platform Function and feature: Put the raw material (steel plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
3 Main machine
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard planting, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the roller also can keep the plate surface smooth and not easy to be marked when it is being stamped.
Rolling galvanization thickness: 0.05 mm
Rolling material: Forging Steel 45#
4 press form
This part adopts the exclusive stamping molds
The upper mold's movement stamps the target material.
The molds are neat in surface and precise in dimension and angle. The stamping depth can be adjusted according to need.
Material of the mold: Cr40. And the mold is heat-treated.
5 Shearing mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Material of the cutting blade: Gr12
6 Hydraulic system
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Hydraulic oil: 40#
7 Computer control cabinet
It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Transducer: The use of it is to make the length more precise and the main machine more stable while processing.
Processing precision: Within 1.00mm
It contains liquid crystal screen, PLC programmer, industrial transducer, transformer for the electronic machines and kits of every part.
Transducer brand: Delta
The seller should provide Chinese and English language screen.
One counter gauges length, pulses, and decides length
No.

main parameter of Glazed tile forming machine
1

suitable material Colored Steel plate, galvanized board
2 Width of the plate 1250mm

3 Rows of rollers 13 rows
4 Size 6500*1500*1200m
5 Total power 4+4kw
6 Thickness of raw material 0.3-0.8mm
7 Productivity 8-10m/min
8 diameter of shaft 70mm
9

Weight About 3.5 T
10

Voltage 380V  50Hz
Prod Model: shibo1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 380V 50Hz 3phases
Control System: PLC Control
Color: You Can Choose
Type: Building Machine
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
