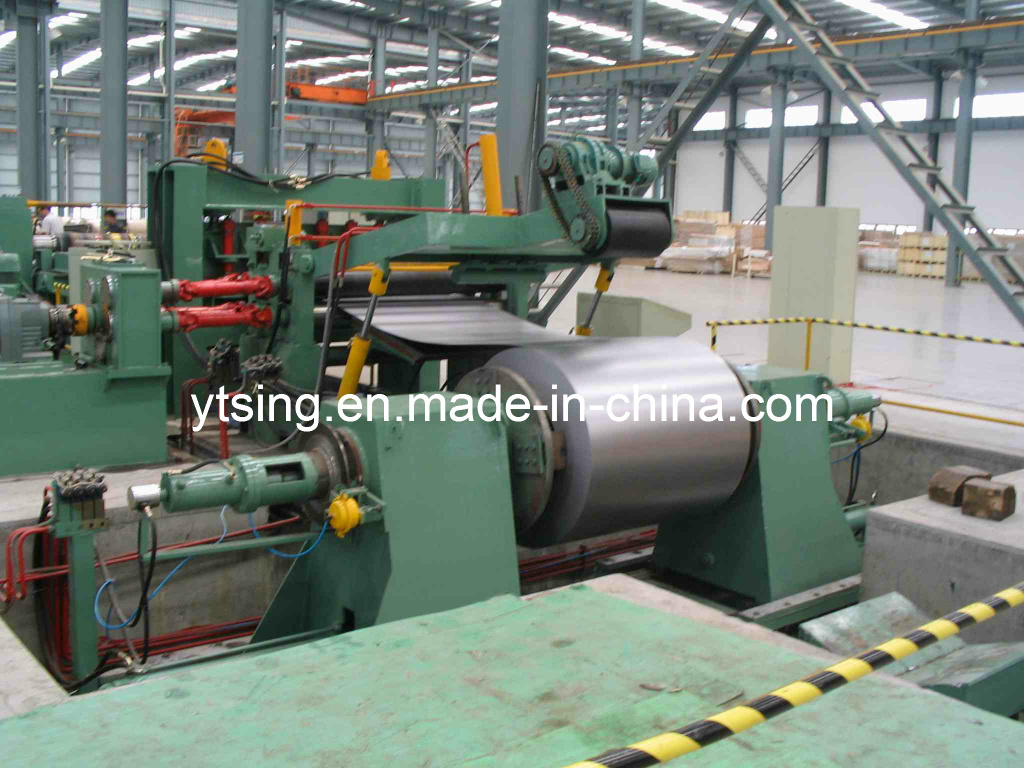

Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, shearer, correct device, slitting machine, scrap recoiler, tension unit, press unit, recoiler and coil car, hydraulic system, ect. It mainly used in coil or hot rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
This line can be adjusted to do recoiling or dividing work to meet customers demands.
PLC system is used to select the information from every part of the line, centrally controlled. There also has speed self adjusted and keep memory after lost power supply function. So the line has efficient performance.
1. PLC computer control
2. No noise, no shake
3. Hydraulic system
4. Easy operation
5. Passed CE certification
6. Passed AAA certification
We can also design many kinds of roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Model |
YD-1-6-1600L |
|
Coil thickness |
0.2mm-6mm-22mm. |
|
Slitting speed |
Max.120m/min. |
|
Loading capacity of the uncilier |
Max6-35T |
|
Coil I.D |
460-560mm |
|
Material of slitting blade |
9CrSi |
|
Precision |
+/-0.05mm |
|
Main shaft Diameter |
240-400mm. |
|
Suitable material |
Hot/cold-rolled/carbon steel/stainless. |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
