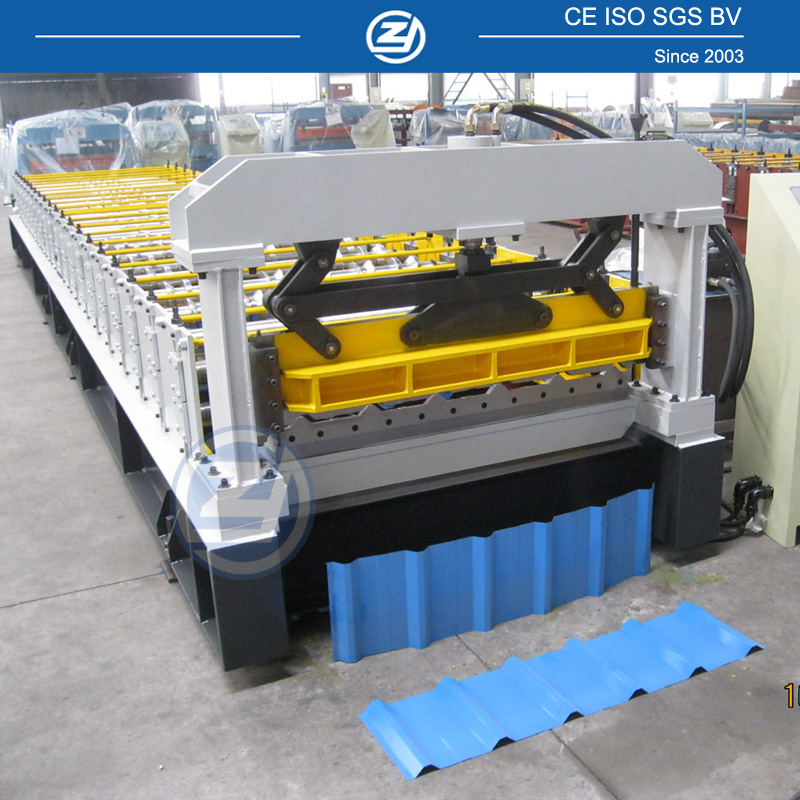

Roll Forming Machine
Main technical parameters:
1. Suitable material: Color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.4-0.8mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: About 20/min
5. Power Requirement Main motor power: 5.5KW (Depend on final design)
6. About 20 stations
Material of Main Equipment
1. Roller Material: High grade No. 45 forged steel, with digital-controlled procession, Plated with hard chrome.
2. Active Shaft Material: High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm.
3. Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
4. Cutter blade: Cr12 mould steel with quenched treatment
About us
1. CE, ISO certificate by SGS.
SONCAP certificate.
2. Mitsubishi PLC controller and transducer from Japan
3.12moths warranty, whole life technical support
4. Customize machines, R&D team with 15 years well experience in desing machine
5. Company occupies 6650 squqre meters, in which 5650 squqre meters for workshops
6. Set up business relationship with companies in more than 20 countries
7. Third party inspection: Bureau Veritas, SGS
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
