Customized Steel Sheet Hydraulic Decoiler

Customized Steel Sheet Hydraulic Decoiler
Price: US $ 16000-28000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

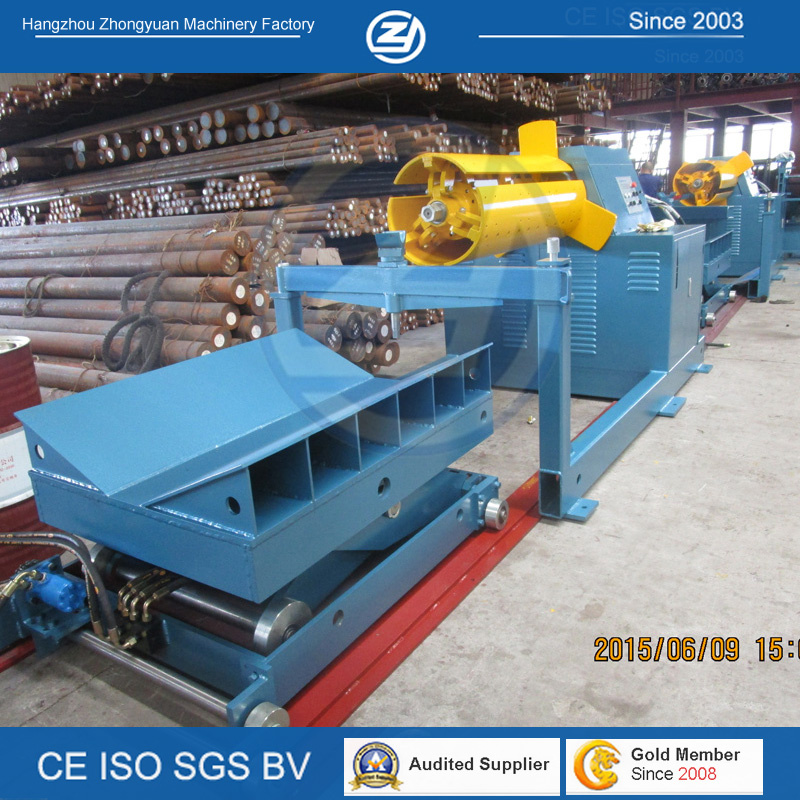

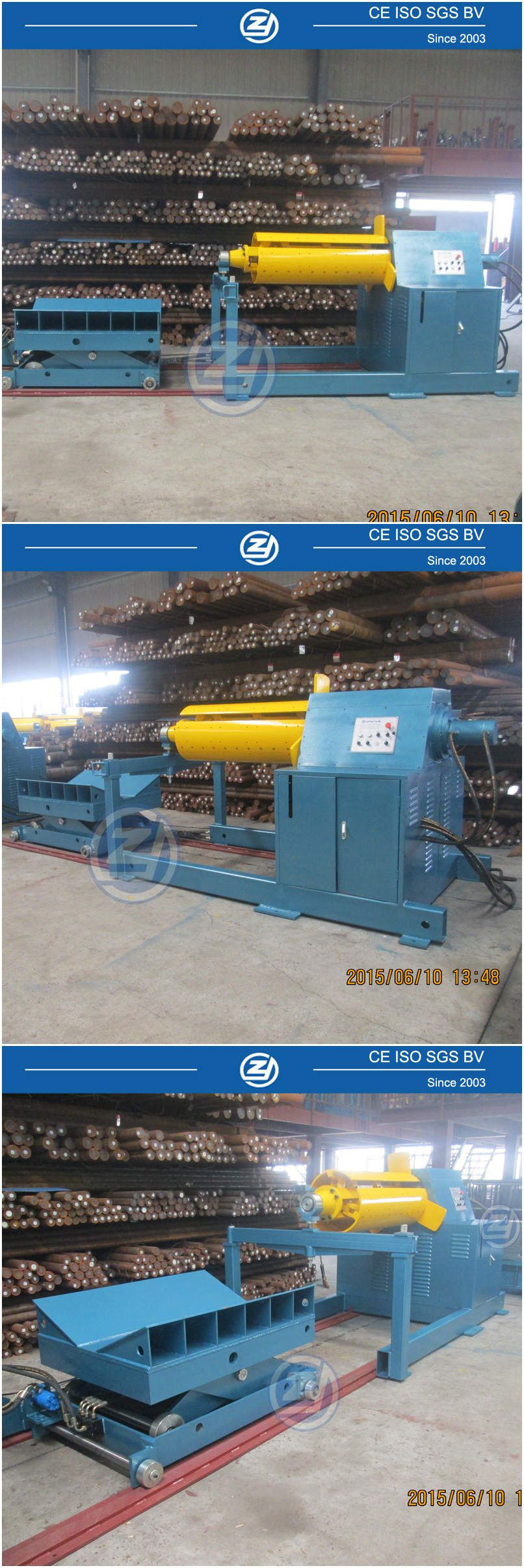

Hydraulic decoiler for roll forming machine

Capacity is 5T or 10T, coil car can be choosed by buyer. It has separate converter\motor and operation screen, no need to connect with roll forming machine.

Function and Feature:
It is an accessory for roll forming machine. It is used to expand and support the coil. It adopts PLC computer to control and has speed adjuster to control the productivity and use hydraulic drive to maintain the inside of the steel with four arms.

Specifications (about)
1. Power: 7KW
2. Voltage: AC380V/50Hz
3. Weight: 1700kg
4. Dimension: 4000mm*1400mm*1200mm
5. Bearing tonnage: Within 5000kg

Machine overview


Power5.5x2 KW
VoltageAC380V/50Hz
Weight1700kg
Loading capacity5 or 10 ton
size4000mm*1400mm*1200mm
Suitable coil ID:  508mm
Suitable material width (max.)1250mm

Why us?

We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.


We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers

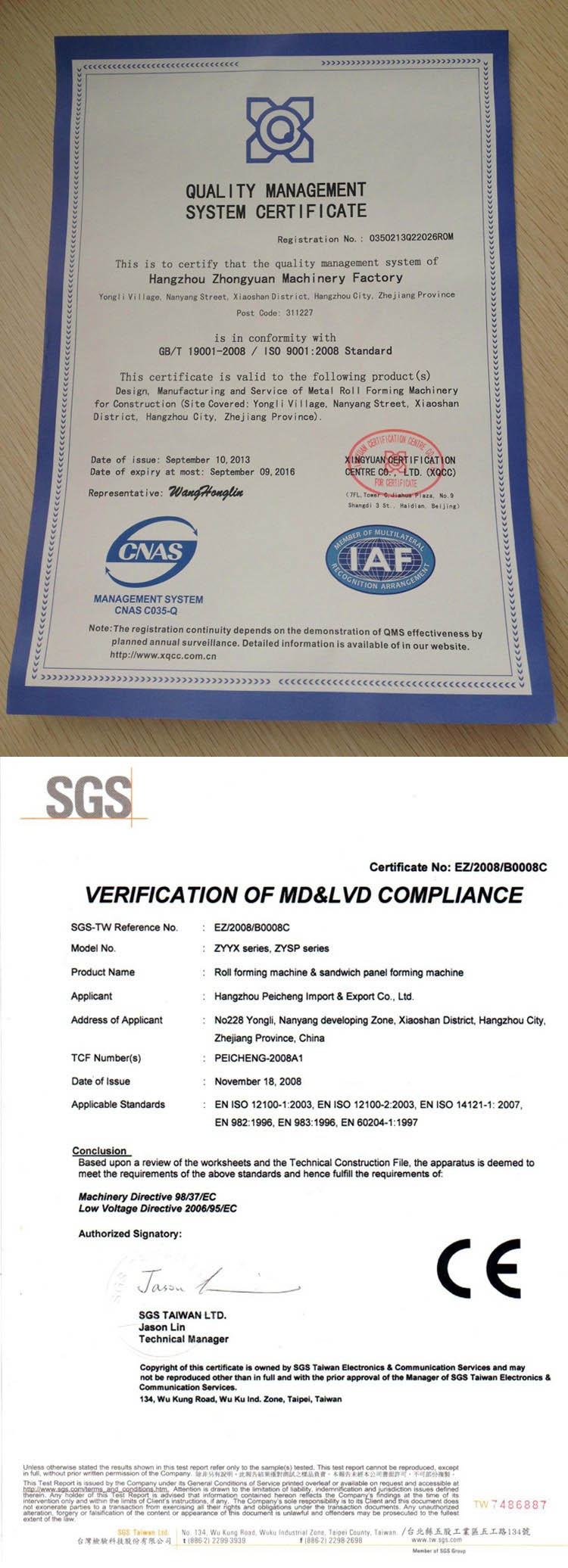

Certificate:


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 60 sets/month for decoiler
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!



FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Prod Model: ZYYX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Capacity: 5t or 10t
Machine Color: Made-to-Order
Certificate: CE, SGS, BV, ISO
Control Mode: Mitsubishi PLC & Converter
Separate Converter And Screen: Yes
Place Of Origin: Hangzhou, China (Mainland)
Delivery: About 30days
Machine Weight: 1.7ton
Operation Language: English or as Per Client`S Required
Guarantee Time: First Year Free, Lifetime Services
Forging Forming Method: Decoiling
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
