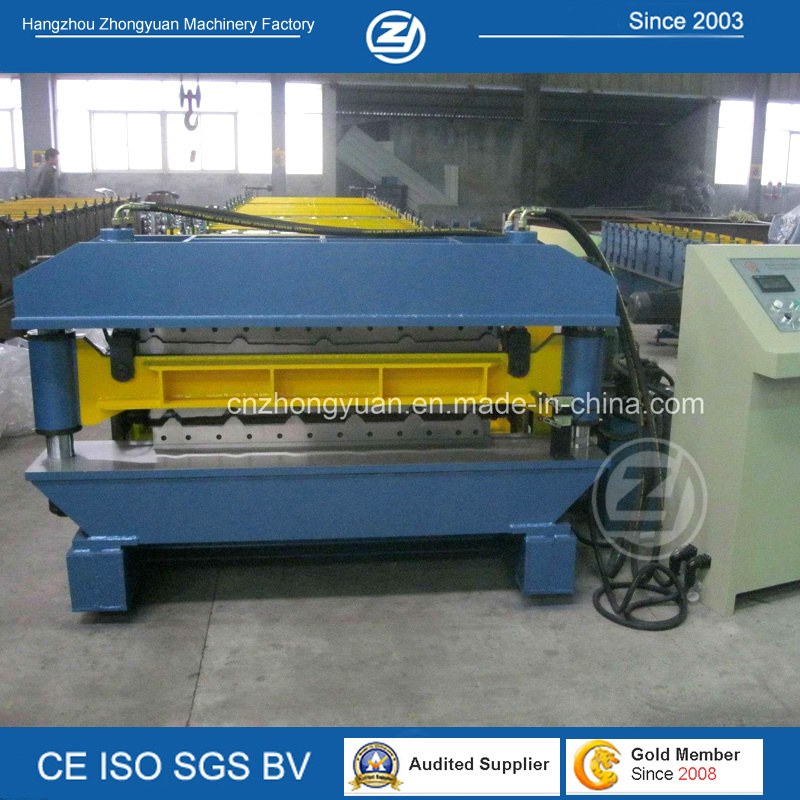

Double Layer Forming Machine
One machine for two profiles
Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
5. 72mm diameter solid steel shaft
6. Cr12 mould steel cutter with quenched treatment.
Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available
Components:
Double layer roll forming machine consists of mechanical uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and run out table.
Technical Parameters
Double Layer Roll Forming Machine
ZYYX26-200-1000 & ZYYX32-150-960 |
| Item | Specification |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 |
| Yield strength (mpa) | 235-345 |
| Forming speed(m/min) | About 20-25 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 7.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 9.7 kw |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 15*1.6*1.6m (Depend on final design) |
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Please feel free to contact us for more information!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
