Application profile
Inspection of: Individually packed products (incl packed bulk products)
Installation in: Conveyor belt line
Used in: Food industry
Chemical industry
Pharmaceutical industry
Textile industry
Packaging industry
Other industries
Typical applications:
Typical applications:
- inspection of butter, cheese and deep-frozen blocks of meat
- inspection of E1 and E2 containers in meat processing
Product description

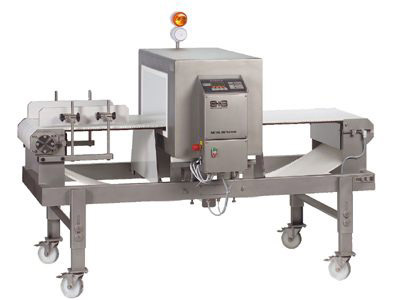

UNICON-D metal detection systems detect all magnetic and non-magnetic metal contaminants (steel, stainless steel, aluminium etc ), even those which may be contained in the product.
The UNICON-D range is designed for dry area applications for inspecting loose and packaged goods up to a maximum weight of 130kg.
The system comprises 4 main components:
- GLS tunnel metal detector
- special conveyor (width of belt from 250mm)
- stop-on-detect control unit
Advantages
- designed specifically to optimize metal detection sensitivity
- modular design concept provides flexibility to create tailormade solutions
- entire system designed for easy cleaning
- RZ coil technology enables length of conveyor belt to be kept to a minimum
- application-specific reject unit options available (inclined conveyor, retracting band etc)
System components
Detection Unit: Two-channel metal detection coil
With closed rectangular aperture
Control Unit: SENSITY microprocessor controller
Options: Multifrequency technology
GENIUS multiprocessor controller
Conveyor belt: Fully-welded, high-strength stainless steel construction
Polyurethane flat belt
Drive: Drum motor
Technical data
Protection rating: IP 65
S+S is one of the world's leading manufacturers and developers of inspection, separation and sorting systems. S+S systems are used in process, packaging and production lines throughout industry and in the specialized preparation of materials for recycling.
Our customers operate in a wide variety of industries; From food, pharmaceuticals and plastics to wood, glass and recycling. For them, the complexities of manufacturing high-quality goods at low cost are ever present.
In many cases, exceptionally stringent hygiene standards must be met.
S+S has developed a range of products unequalled in versatility and quality.
We put the customer first; Each project is given individual attention to ensure the best practicable solution. S+S provides outstanding levels of service, creating standards for others to follow.
Precision, intelligence and customer focus: These three guiding principles govern the quality of the services we provide, and are key to the trust we have built up with our customers over the years. Our commitment is guaranteed for the long-term. S+S is an independent organisation, first established in Germany in 1976; Our principle facility for design, development and manufacture, and our commercial headquarters remain there. This offers a level of consistency which continues through to our subsidiaries and encompasses all our after-sales activities.
