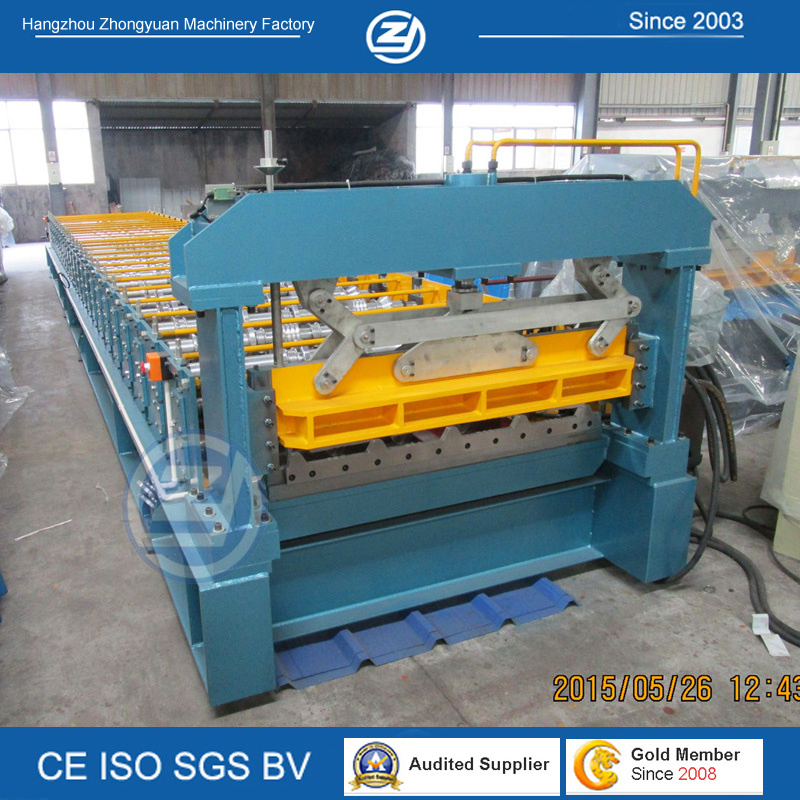

ISO Metal Roof Cladding Roll Forming Machine
Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
5. 72mm diameter solid steel shaft
6. Cr12 mould steel cutter with quenched treatment.
Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available
Quality by Zhongyaun
Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.
Certificate: CE; ISO; SONCAP
Machine data
| Item | Specification |
Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.4 -0.7 |
| Yield strength(mpa) | 235 -345 |
| Forming speed(m/min) | About 15 |
| Output speed(m/min) | 12 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Length measurement | E ncoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 7.5KW (Depend on final design) |
| Hydraulic station power | 2.2Kw (Depend on final design) |
| Total power(kw) | 9.7KW |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs(can be increased to be 10T) |
| Machine`s size | About 20*1.5*1.4m (Depend on final design) |
Components of machine: |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Roll forming- -- Hydraulic Cutting – product to run out table |
We care about quality
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
We care about user experience
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
Please contact us start to customize your machine now!
