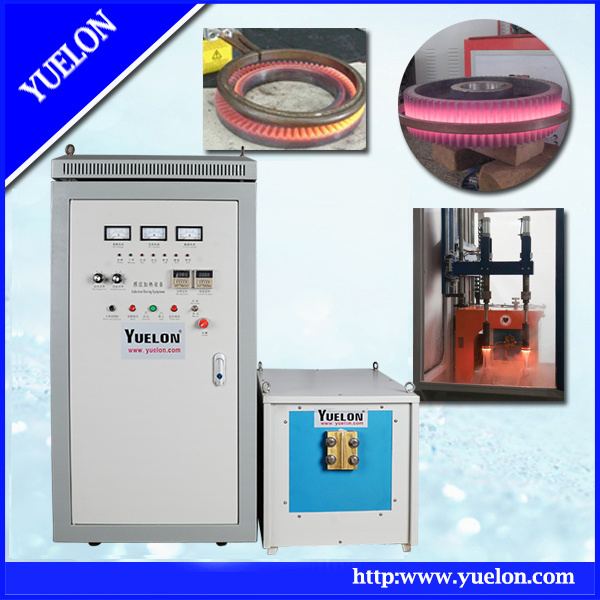

Induction Forging Equipment for Steel, Iron and etc

Induction Forging Equipment for Steel, Iron and etc
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
ModelMax output
power
FrequencyMax input
current
Working voltageInput
voltage
Duty
cycle
Water flowGenerator
weight
Transformer
weight
Generator
size
SF- 30AB30KW10-40KHZ48A342-430V




3phase
380V
50/60HZ
100%27L/(min)





(0.1Mpa)
61KG31KG
SF-40AB40KW10-40KHZ80A342-430V32L/(min)73KG37KG
SF-50AB50KW10-40KHZ90A342-430V32L/(min)75KG41KG
SF-60AB60KW10-40KHZ110A342-430V40L/(min)80KG46KG
SF-80AB80KW10-40KHZ160A342-430V50L/(min)106KG68KG
SF-100AB100KW10-40KHZ200A342-430V50L/(min)121KG91KG
SF-120AB120KW10-40KHZ240A342-430V68L/(min)138KG95KG
SF-160AB160KW8-30KHZ280A342-430V68L/(min)151KG121KG
SF-200AB200KW8-30KHZ320A342-430V80L/(min)172KG125KG
SF-250AB250KW8-30KHZ380A342-430V80L/(min)180KG131KG
SF-300AB300KW8-30KHZ460A342-430V100L/(min)185KG136KG
SF-350AB350KW8-30KHZ540A342-430V100L/(min)192KG141KG

Main characteristics:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can substitute traditional heating methods.


Heating (hot forging, hot fitting and smelting):
1. Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.

2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.

3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.

How about the payment terms and delivery time?

Terms of payment:

small machine 100% T/T deposit in advance. big machine 50% deposit, 50% before shipment.

Time of Shipment:

small machine delivery time within 7 days. big machine delivery time within 30 days.


We offer complete service :

Before sales

Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales

Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine. Provide long-terms technical support.



Prod Model: SF-120AB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For: Forging, Hardening, Melting, Heating and etc.
Place Of Origin: Yongkang China (Mainland)
Mining Object: 1 Set
Voltage: 340-480V
Power(Kw): 120kw
Certificate: CE
Work Condiction: 24hours
Cooling: Water
Duty Cycle: 100%
Forging Forming Method: Mold Forging
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
