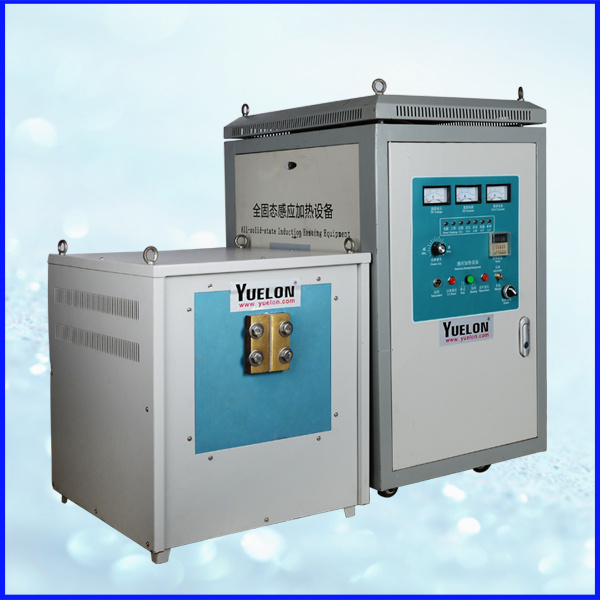

High Frequency Induction Heating Machine (SF-80AB)

High Frequency Induction Heating Machine (SF-80AB)
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
SF-80AB

Main specifications:
Maximum output power: 80KW
Frequency: 10-40KHz
Maximum input current: 160A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: 0.1Mpa 50L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:

Model Net weight(KG) Size: L x W x H (mm) Packing weight Pacing size: L x W x H (mm)
SF-80AB generator 106KG 770x510x1100mm 215KG 880x1020x1200mm
SF-80AB transformer 68KG 480x410x410mm

Main characteristics:
1. IGBT inversion technology based LC series circuit.
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: Converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can subsititue traditional heating methods.

Application:
Rod forging
Bolt, nut forging
Heat treatment of shaft, gear, pin, etc.
Shrink-fitting
Annealing of pipe welding etc.

We offer complete service :

Before sales

Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales

Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).

Supply pictures or video help customer to install machine.
Provide long-terms technical support.

Prod Model: SF-80AB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For: Forging, Hardening, Melting, Heating and etc.
Place Of Origin: Yongkang China (Mainland)
Work Power: 380V 50-60Hz
Certificate: CE
Operation: Safe&Easy
System: IGBT
Cooling: Water
Work Condiction: 24 Hours
Duty Cycle: 100%
Forging Forming Method: Mold Forging
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
