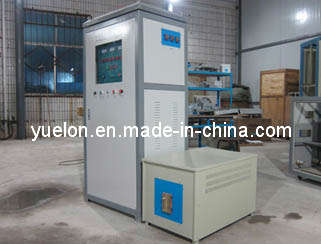

MFS-100
Main specifications:
Maximum input power: 100KW
Maximum frequency: 0.5-10KHz
Maximum input current: 160A
Input voltage: 380VAC three phases, 50 or 60Hz
The range of operating voltage: 342-430V
Duty cycle: 100%
Efficiency: 90%
Cooling water: 10-20m3/h
Generator weight: 180KG
Generator size: (L x W x H): 620 x 680 x 1630mm
Main applications:
Hot Forging/forming for large workpiece
Surface hardening for large part
Preheating of pipe bending
Annealing of pipe welding
Melting of copper\ aluminum and so on
Shrink-fit of sleeve of roller
etc.
Main characteristics:
1. voltage feedback design and adopt IGBT based LC series resonance circuit
2. IGBT inversion technology, high energy conversion over 97.5%
3. energy saving 30%up compared with SCR technology. In series resonance circuit, induction coil with high voltage and low current, so energy loss is very low. Soft switch technology applied then switch loss is very low.
4. it can be started up 100% under any condition.
5. 100% duty cycle, 24hours continuous working ability at maximum power.
6. less harmonic current and high power factor. Power factor always remaining 0.95 above during machine running.
7. the frequency tracking automatically technology enables power factor to remaining high level throughout heating process.
8. Good reliability, IGBT is a self turn-off transistor that ensures inversion with success and takes protection instantly; IGBT used from infineon company, world-renowned manufacturer.
9. easy to operate and maintain, IGBT MF induction generator is easy to prevent and maintain due to its simple circuit structure. It has perfect protection.
Options:
1. a range of heating furnace, customized different type of heating furnace according customer's requires.
2. infarared sensor
3. temperature controller.
4. CNC or PLC controlled mechanical fixture for hardening application.
5. hydraulic pump
6. water cooling system
7. pneumatic rod feeder.
8. customized whole automatic heating system.
We offer complete service :
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine.
Provide long-terms technical support.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
