| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forming Speed: |
About 15m/Min |
| Main Motor: |
5.5kw |
| Controlling System: |
Mitsubishi PLC & Converter |
| Machines Weight: |
About 12t |
| Machine Size: |
About 15m× 1.5m× 1m |
| Cutter Blade Material: |
Cr12 Mould Steel with Quenched Treatm |
| Cutting Type: |
Cut to Length |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel, Plated with Hard Chrom |
| Shaft Diameter: |
82mm |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

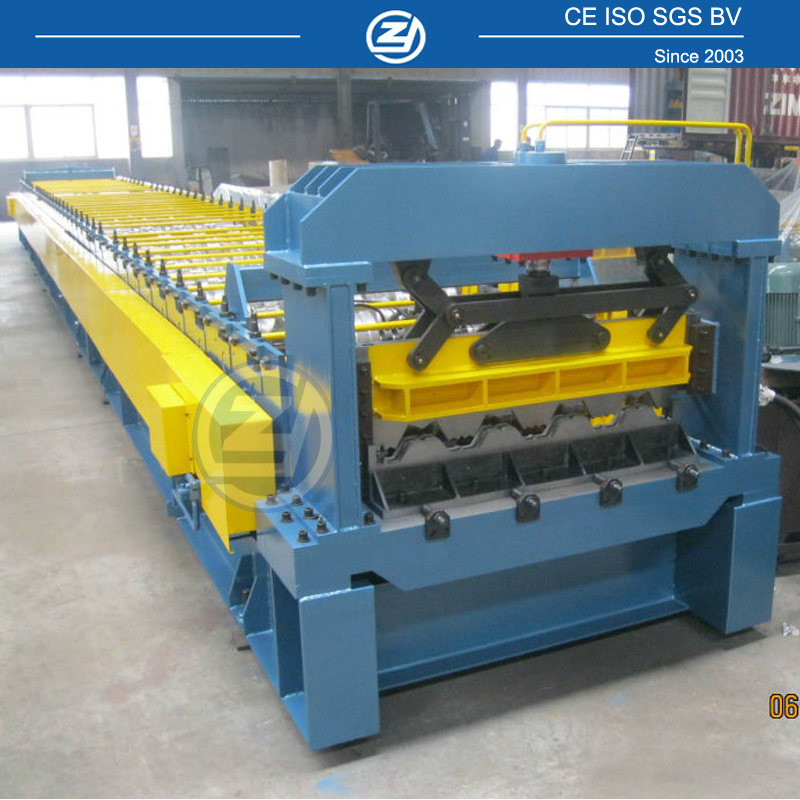

Floor Metal Deck Cold Roll Forming Machinery
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
| Iterm | Specification |
| Material | Type | Color steel sheet or galvanized steel sheet |
| Thickness(mm) | 0. 8 -1.2 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 12-15m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel, quenched treatment |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 18.5KW (Depend on final design) |
| Hydraulic station power | 5.5K W (Depend on final design) |
| Total power(kw) | 30KW |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 20*1.5*1.6m (Depend on final design) |
| Machine weight | About 16000kgs |
Components
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Pressing system | 1set |
| Main roll forming machine | 1set |
| Cutting device | 1set |
| Hydraulic cutting system | 1set |
| PLC Controlling system | 1set |
| Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
