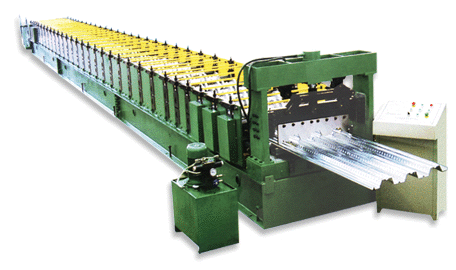

Specifications
forming steps: 16
motor power: 5.5 KW
Hydraulic cutting system
PLC control (Panasonic brand)
CE certification
Component and Function
1. Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement.
2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

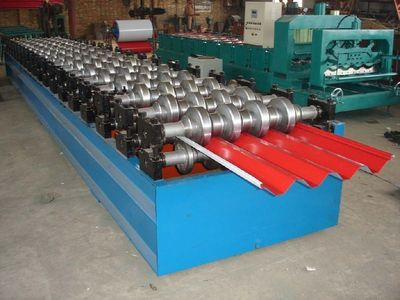

3. Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool..
4. Main applications: Wall roof
5. Working speed: 20 m/min
Our company is a big exporter of various kinds of steel and iron products, metal mineral.
One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.
Here are our steel products:
Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.
The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.
Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).
If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
