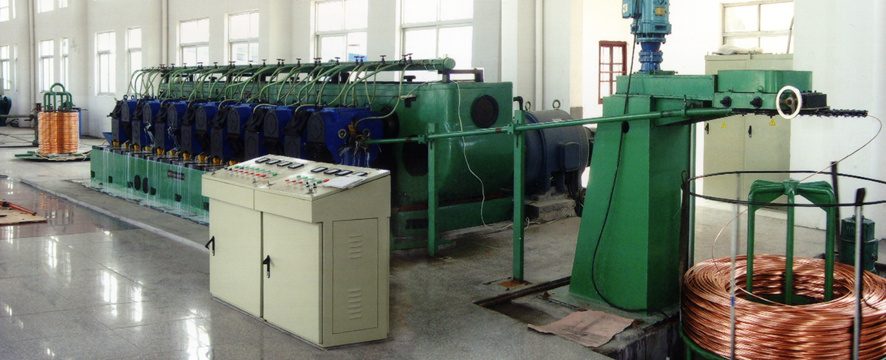

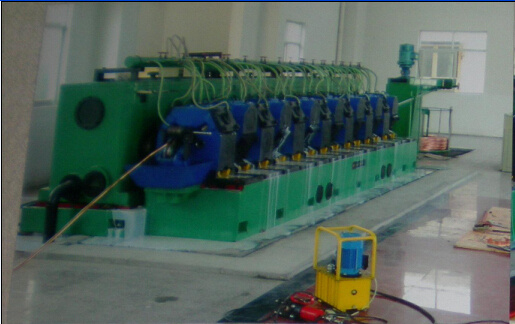

Copper Rod Cold Rolling Machine
| Price: |
US $ 200000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
255/14-Y Copper Alloy Rod Continuous Rolling MachineTechnical Specification
1 Machine applicationThis machine adopts continuous rolling technology to produce upcasting Cu-Mg(Cu-Ag) rod with different specification by cold rolling. The raw material is upcasting copper rod. After rolling by the machine, the tensile strength of copper alloy rod is high, and the efficiency of extension is good. It can be used for railway wire and cable, and copper enamelled wire etc.2, Machine component,14,,.,.Rotary type pay-off stand one set, 14 stands cold rolling machine one set, coil type take-up machine one set, electrical control system one set. The whole machine runs stably,safely and reliably.3, Main technical parameter of machine| 1 | Max. inlet wire dia. | φ30 |
| 2 | Min. outlet wire dia. | φ6.5(±0.2) |
| 3 | Tensile strength of rolling product | ≤525 MPa |
| 4 | Stand type | Y type Three-roller |
| 5 | Roller material | Cr12 |
| 6 | Stand material | 1#-5# steel casting, 6#-14# spheroidal graphite casting |
| 7 | Stand number | 14 stand (among them, up transmission stand 7 pieces, down transmission stand 7 peices) |
| 8 | Nominal dimension of roller | φ255mm |
| 9 | Speed ratio of adjacent stand (1#-4#) | 1.22 |
| 10 | (5#-10#)
Speed ratio of adjacent stand (5#-10#) | 1.20 |
| 11 | Speed ratio of adjacent stand (11#-14#) | 1.18 |
| 12 | Final rolling speed | 1.75 |
| 13 | Motor power | 355KW(Z4-355-12 355KW 750r/min) |
| 14 | Main body gear material | QT60-2 and 42CrMO,(high speed grade is 42CrMO)
|
| 15 | Noise | ≤85dB |
| 16 | Total motor power | About 500 kw |
4,:Machine featuresMachine baseboard adopts whole casting number HT-150, weight 13T. This makes the rolling machine has the advantages of good shock absorption, change preventing, high strength and low noise.The main speed reducing box adopts HT-200 casting box, weight 12.5T. It goes through heat treatment ,40cr,.
All the shafts in the main speed reducing box are 40cr alloy steel, and go through thermal refining.Inlet shaft of main motor of the main speed reducing box are two pieces 20CrMoTi grinding gear, they are of good impact resistance and strength. Other gears are QT50-7 ductile iron gears. They are of good abrasive resistance and strength. Long and short shafts in stands adopts 40Cr alloy steel and go through thermal refining.Roller adopts Cr12 bearing steel, it is of good red hardness.40Cr,,,.
Bevel gear in the stands adopts 40Cr alloy steel. It goes through nitrogen treatment, it has high surface hardness and good ductility.,,,.All the bearings adopt Haerbing, Wafangdian and Luoyang domestic famous brands. It can also adopt imported bearings according to customer's requirement..Motors adopt domestic famous brand.Electrical control DC device adopts Simens series. Operating platform man-machine surface,the air switches below 32A adopt Siemens product. Above 32A adopt domestic famous brand.Connecting shaft between main speed reducing box and stand adopts 45# forged steel, and is processed by precise digital control, makes sure the conical match between the couplings. And, it makes sure the life span of the main shaft and couplings, reduce the fault of the machine..It adopts non-steel movable cover for the stand part of the main machine. The outlook is beautiful. It can reduce the noise of the machine, and is good for the recover of the emulsion. It is also good for maintaining the clean of the working site.
| Prod Model: |
255/14-Y type |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper / Alloy Rod Rolling Machine: |
by Cold Rolling |
| Cold Rolling Machine: |
for Copper Rod or Copper Alloy Rod |
| Certification: |
CE |
| Transmission Type: |
by Motor |
