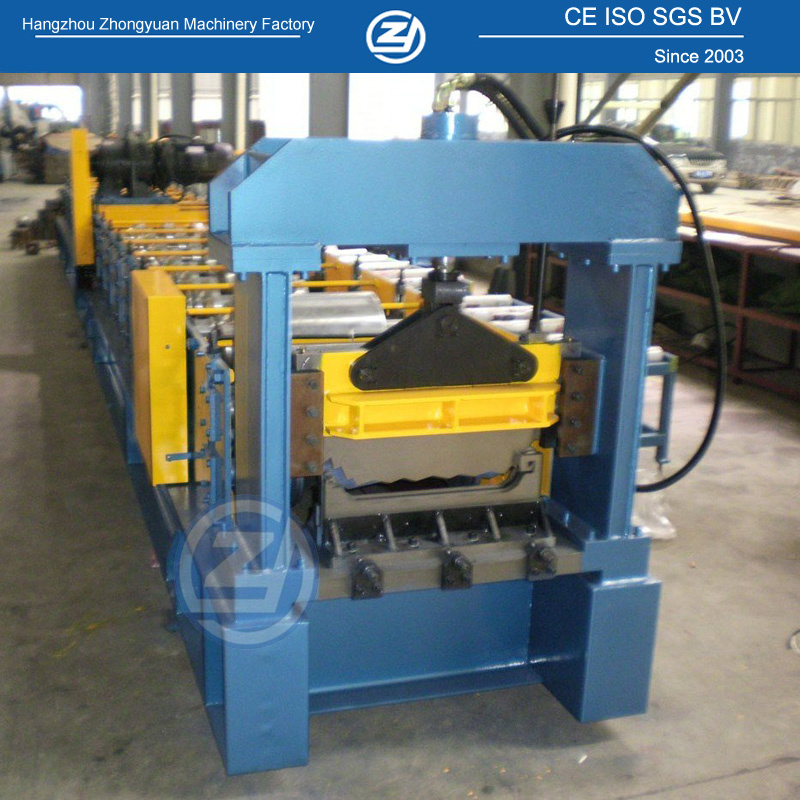

Self-lock Roof Panel Roll Forming Machine
Why choose this machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Improved structure, more stable cutting performance.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft
1. Product Feature:
The product from roll forming machine looks beautiful and widely used as the roof of garden, factory, hotel, exhibition center, etc
2. Certificate: CE; ISO; SONCAP
3. Parameters
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 15 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 7.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 7.7 kw |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 11*0.8*1.4m (Depend on final design) |
| Components of machine |
|
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table |
