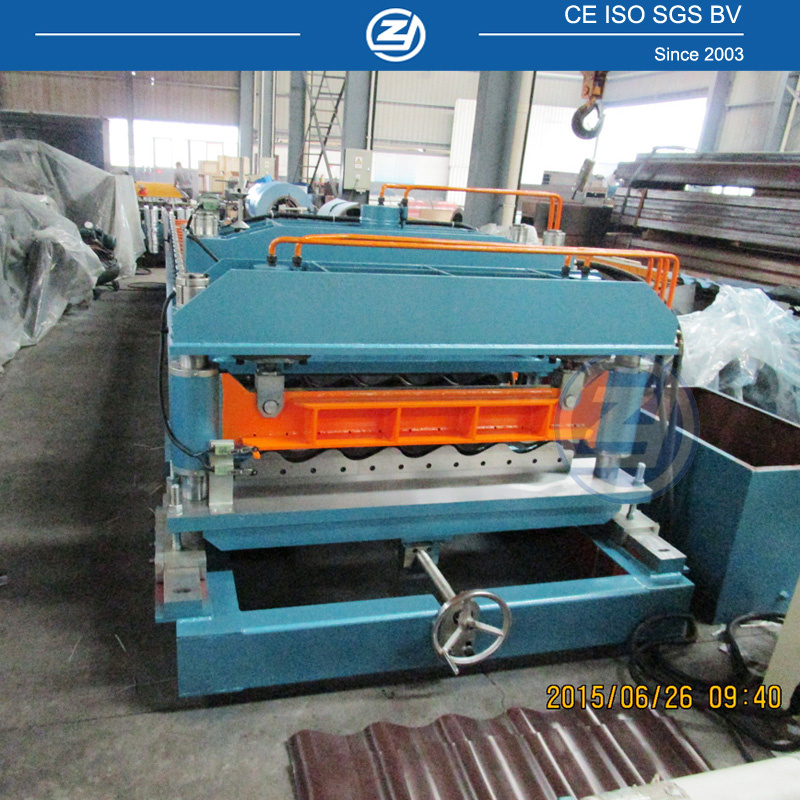

Color Steel Roof Tile Roll Forming Machine
Why choose this machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Improved structure, more stable cutting performance.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft
Machine data sheet
| Item | Specification |
| Type | Color steel sheet |
| Material | Thickness(mm) | 0. 5 -0. 6 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 1500-2000mm/min or 4-5m/min. For option |
| Step distance | Adjustable according to requirement (>=250mm) |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW (Depend on final design) |
| Hydraulic station power | 5.5K W (Depend on final design) |
| Total power(kw) | 11KW |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs
(can be increased to be 10T) |
| Machine`s size | About 14*1.7*1.4m (Depend on final design) |
| Machine weight | About 9500kgs |
Components of machine: |
|
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Pressing device | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Process flow: |
|
| Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting – Product to Run Out Table |
