| Type: |
Metal Rolling&Drawing Machine |
Product Description
C/Z purline steel interchangeable cold roll forming machine
1. High Quality
2. No. 1 Service
3. Best price
4. Steady performance
C/Z purline steel interchangeable cold roll forming machine, cold roll forming machine, C/Z profile steel cold roll forming machine, automatic cold roll forming machine
Equipment Introduction

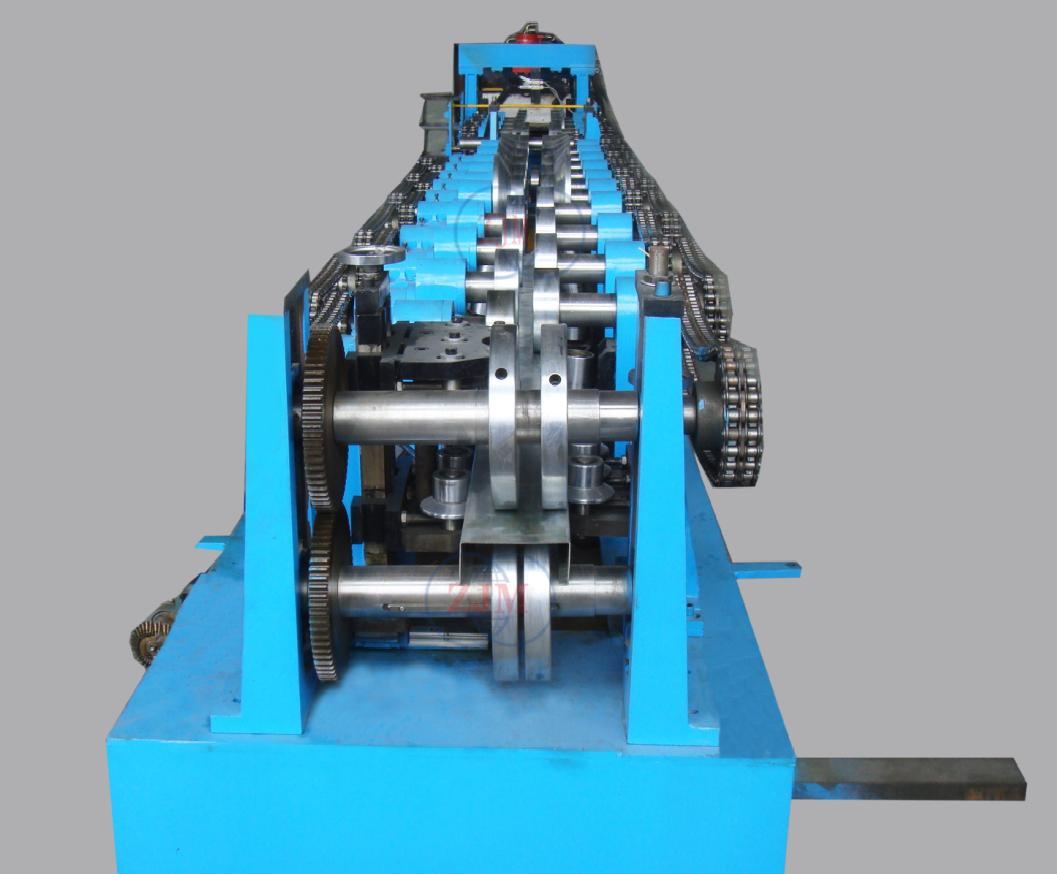

This is a c/z two-in-one purline roll forming machinery, realized manual rapid change
Between c-type and z-type within 10 minutes.
Features:
It contains cutting and punching, Cutting and punching are before roll forming
By full-automation transforming products specification
Production specification is adjusted by mm unit
Operation convenient
Main technical paramerer
Function: Producing c/z purline
Main motor type & power: Phase asynchronous motor & 11/15KW
Oil-pressure power: 5.5KW
Speed of roll forming: 10-14.8m/min
Thickness of Metal rolling sheet: 1.5-3.0mm
Material of roller: GCr15
Material of main shaft: 40Cr
Electric control system: PLC
Mechinery total length&width&height: 1.0m&1.4m&1.8m
Weight capacity of decoiler: 4.5T
Number of products support frame: 3 piece
Notes: If main moter is hydraulic motor, the speed of roll forming is 16-21m/min
Hydraulic motor power: 22KW.
