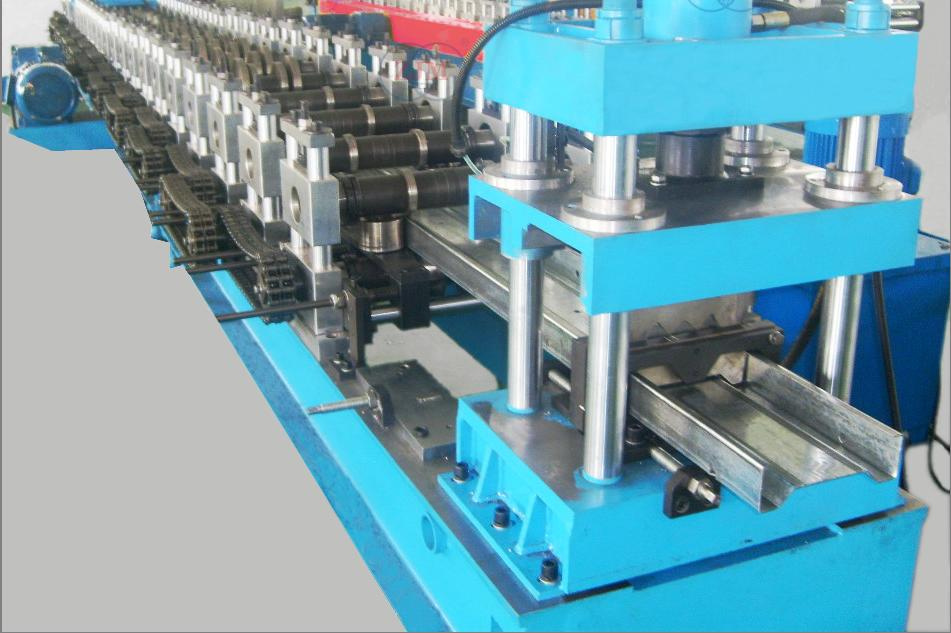

This special M type purlin roll forming machine is advantaged with high speed, smooth surface, highly products...
Features:
It contains cutting and punching, Cutting and punching are before roll forming
By full-automation transforming products specification
Production specification is adjusted by mm unit
Operation convenient
Main technical paramerer
Main motor type & power: Phase asynchronous motor &15KW
Roller stands: 18-20
Tolerance: +_1mm
Oil-pressure power: 11KW
Speed of roll forming: 17m/min
Thickness of Metal rolling sheet: 1.5-3.5mm
Material of roller: GCr15
Electric control system: PLC
Number of products support frame: 3 piece
Notes: If main moter is hydraulic motor, the speed of roll forming is 16-21m/min
Wuxi zhongborui Machinery Co., Ltd. is a leading roll former manufacturer in China which specialized in all kinds of roll forming machine such as roof panel roll forming machine, wall panel roll forming machine, Deck floor roll forming machine, C/Z purlin roll forming machine, Glazed tile roll forming machine and slitting machine and decoiler.
We are very professional in roll forming designing, producing and supplying the total solution for customer. We engage in supply the special customizing service and prompt after-sales service.
