1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Complete Line Consist Of
1) Passive/Hydraulic Single /Double Uncoiler
2) Roll Forming Machine Unit
3) Hydraulic Automatic Cutting Unit
4) PLC Automatic Control Cabinet
5) Product Run Out Table
Features:
1. The C purlin forming machine can produce purlins from 100mm to 400mm width. The maximum thickness of the purlin can be formed at 4.0-6.0mm.
2. With the driving system using the gimbal, the C purlin forming machine has much stronger driving power and is more stable when forming the purlins.
3. Using the PLC control system or handle wheel, the C purlin forming machine automatically adjusts while forming any width of the purlins. It saves time and is much easier than adjusting the spacers of the rollers.
4. The C purlin forming machine's cutting unit gives you the choice of precut or post cut.
5. The C purlin forming machine can be designed to roll form any width of the purlins.
Application:
The products of C purlin forming machine have excellent anti bending property and are easy to install. They are used as the supporters of the roofing and wall construction in factories, warehouses, garages, exhibition centers, cinemas, gardens, etc.
Packaging:
The C purlin forming machine is wrapped and covered with film making the package seaworthy. The legs of the machine are fixed with angle steel and heavy screws.
Configurations:

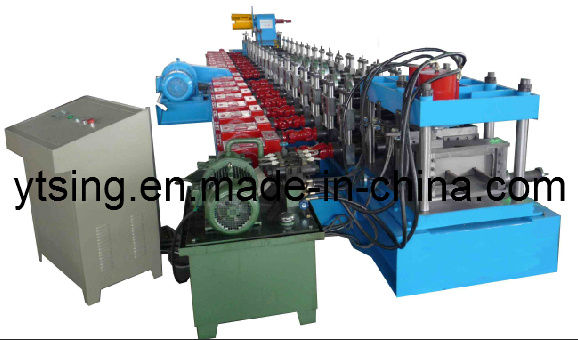

The C purlin forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet and product run out table.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
C Purlin Roll Forming Machine |
|
Number of stations |
14 sets |
|
Thickness |
1.5-3.0mm |
|
Main power |
15KW |
|
Shipment packing |
one 40FT container |
|
Forming speed |
12-15mtr./min(Not include shear) |
|
Productivity |
Products as the drawing |
|
Man power required |
One operator with one assistant |
|
Set up time |
15 mins |
|
Working hours per day |
8 to 16 |
|
Line direction |
Left to right while facing operator panel |
|
Approximate machine height |
1.5M |
|
Complete Line Consist Of |
|
Passive/Hydraulic Single /Double Uncoiler |
|
Infeeding applicator |
|
Roll forming machine unit |
|
Hydraulic press |
|
Hydraulic automatic cutting unit |
|
Output table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
