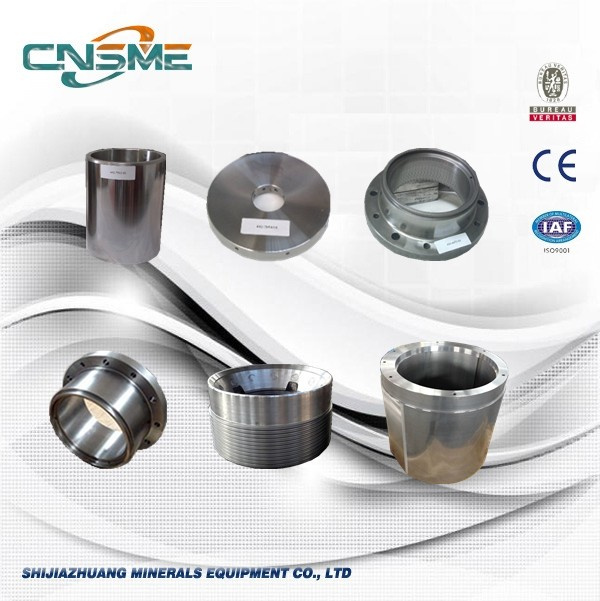

Steel Casting for Cone Crusher Parts

Steel Casting for Cone Crusher Parts
Price: US $ 100-25000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: HP100 HP200 HP300 HP400 HP500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Processing: Casting
Logo: as Customer Request
Product Property: Durable and Stable
Advantage: Wear Resistant
Operating: Stable Operating
Type: Cone Crusher
Application: Stone Industry
Drive: Electric
Crushing Style: Extruding
Compressive Strength (',For Crushing): 250-300MPA
Crushing Degree: Fine Grinding Machine
Finished Surface: Outer Surface Process

Product Description

Parts We Can Supply

TypeModel
cone,jawHP100,HP200,HP300,HP400,HP500,HP800;
HP3,HP4,HP5
C96,C100,C105,C106,C110,C160,C200;
MP800;VTM-1250
othersH2800,H3800,H4800,H5800,H6800;
CH430,CH660
cone3 FT,4 FT,4-1/4 FT ,5-1/2 FT,7 FT
OEMBronze casting,High manganese steel casting


Cone Crusher Liner
Applications:Cone crusher
Material:Mn13Cr2;Mn18Cr2;Mn22Cr2
Type:HP100,HP200,HP300,HP400,HP500;;MP Series

Material Categories:
Manganese steel castingsMn 13%, Mn 18%, Mn 22% (with or without chrome   &/or molybdenum additions)
High chromium white ironsCr13%, Cr20%, Cr25% and Ni-hard
Bronze Castingsup to Pb 22% fully machined
Carbon SteelAs per Major International standard or customers' special request
 High strength low alloy castings
 Grey iron, ductile iron


 Description
Cone crusher works as similar as Gyratory Crusher.Cone crusher applys mainly at secondary and/or at tertiary crushing activities in a circuit,where smaller feed passes through.However this stage of crushing requires better ratio of ore/rock passing size.


CNSME Product Features and Benefits
1. Strict raw materials quality control.
2. Optimized chemical composition. In our factory, we constantly work on wear life
  improvement projects for our clients and delivery of the products as proposed, so our
  product can facilitate your operational requirement.
3. Smooth machining surface of castings.
4. Cleanliness of molten steel. Our unique refinery process minimizes oxygen, nitrogen,
  hydrogen and other non-beneficial elements to produce clean and fine steel product.




High Manganess Casting Material Chemical Composition
Material CodeCMnSiCrPS
ZGMn13Cr2C:0.9-1.3Mn:11.0-14.0Si:0.3-1.0Cr:1.5-2.5P:≤0.06S:≤0.04
ZGMn18Cr2C:1.1-1.5Mn:16.5-19.0Si:≤0.8Cr:1.5-2.5P:≤0.07S:≤0.04
ZGMn22Cr2C:1.1-1.4Mn:20-24Si:≤0.8Cr:1.5-2.5P:≤0.07S:≤0.04

Facilities:

Electric arc furnace(10MT)3 sets
AOD furnace(10MT)  1 set
Baird spectrograph  1 set
No-Bake resin sand mixer4 sets
Shot Blasting Machine 1 set
Heat treatment oven4 sets
Air and water quenching equipment2 sets
Pressing rectification equipment(50-500MT)2 sets



FAQ

1.Q: What products do you offer?
A: CNSME provides parts are tailored with your requirements. It ranges mainly from METSO crusher parts, especially HP C series, totally replacement parts, we also welcome OEM offer from you.

2.Q: What materials can you make?
A: Our speciality is high manganese steel(Mn13, Mn18,Mn22 or customized formula), we also produce alloy steel,cast iron, high or medium chromium cast iron and bronze.

3.Q: How about the capacity?What's the max weight of workpiece that can be casted?
A: The capacity is 110 tons per workday. The heaviest workpiece we have casted is 18 metric tons.

4. Q: What information should we provide to you to confirm our order of parts?
A: For standard part, you only need to provide the part number than we will define the part. But others, you should provide the technical drawings of your parts.

5. Q: What's the after-sales service if your product has quality problem?
A: First of all, you should provide us photos of the problem part and machine, then our engineers will collect the necessary information to find the root cause. If it's indeed a quality problem of the product itself, we must afford compensation to you and also figure out solutions to avoid the same problem. However if it's caused by client's misconduct, we also provide the technical suggestions for our clients to solve problem better.

6. Q: Can we visit your factory?
A: Yes, of course, welcome to our factory in workday and our sales team will show you everything you want to know.

7. Q: Why choose your company?
A: Passion-We are not the most handsome or beautiful, but we have a loyal heart to serve for you.

   Honesty-Every question we thought stand on the position of customers. To offer the best copper bushing and sleeves is our biggest value.
   Technology-we use advanced casting technology,sand casting /centrifugal casting /metal casting to meet different client's product requirement.



Shijiazhuang Minerals Equipment Co., Ltd is a hi-tech, professional company. We are specialized in the solution service with managing mining equipments OEM service and other related equipments. With decades of development, we have built a complete system on the mining equipment design, selection, application and maintenance. We devote ourselves to offering the solutions for customers from all over the world.

During these years, we focus our attention mainly on the downstream and upstream products, especially the field of crusher. Such as Metso HP series crusher parts and OEM services. And now our products have been sold to 120 countries and areas of southeast Asia, East Europe, South America, the Middle East and Africa, etc, we have confidence that more and more foreign markets will be promoted in the near future.
