Round Brass Bar Induction Hot Forging

Round Brass Bar Induction Hot Forging
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: SF-100AB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For: Forging, Hardening, Melting, Heating and etc.
Place Of Origin: Yongkang China (Mainland)
Brand Name: Yuelon
Voltage: 340-480V
Certificate: CE
Work Condiction: 24hours
Cooling: Water
System: IGBT
Duty Cycle: 100%

Product Description

Induction heating for forging of billets and bar is an extremely faster method than radiant heating.
Due to the speed of heating and the fact that heat is generated directly into the work piece, scale
formation and decarburizing is reduced, resulting in less material waste, better end product and increased die life.
The Inductoheat Forging equipments are designed to meet the needs of the modern forging
industry.
It is a compact design incorporating feed system, solid state power supply, induction coil line and operator controls in a unitzed single package.
The integrated concept of the equipment eliminates the need for interconnections between
separate components typical of conventional heating systems, saving floor space and installation
time. Forging equipments are available with outputs from 50kW to 7500kW and frequencies from 500Hz to 30kHz. Optional features include accept/reject with optical pyrometer monitoring, cold
and hot material handling, fault diagnostics and a cycle hold facility.
Simple manual systems and fully automatic machines are also available for end bar heating
applications. We have also supplied IGBT Transistorised Solid State Equipment for forging
application, which is latest State Of art Technology equipment for getting higher performance
output.

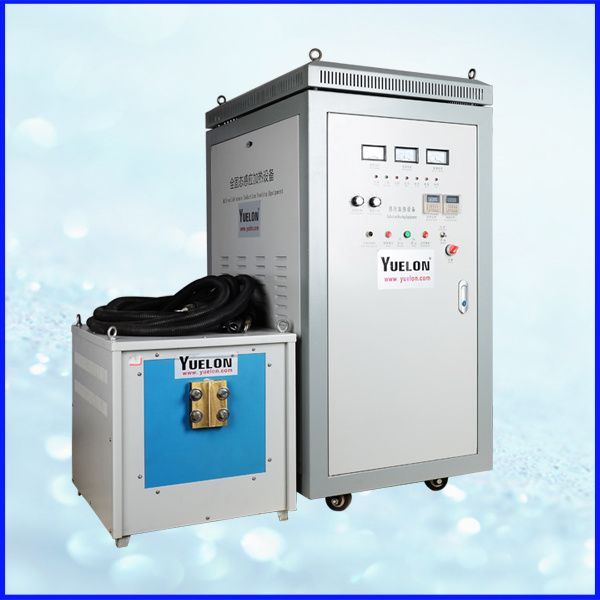

Model:YUELON-100KW
Max output power:100KW
Max input current:200A
Frequency:10-40KHz
Working voltage:342-430V
Input voltage:380V50HZ/60HZ
Duty cycle:100%
Water flow:50L/min
Generator weight:(0.1Mpa)
Transformer weight:121KG
Generator size:91KG
Water flow:770*510*1100
Transformer size:560*440*530

Main characteristics:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can substitute traditional heating methods.


Main Application:
Rod forging
bolt, nut forging
heat treatment of shaft, gear, pin, etc.
shrink-fitting
annealing of pipe welding
etc.


We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
