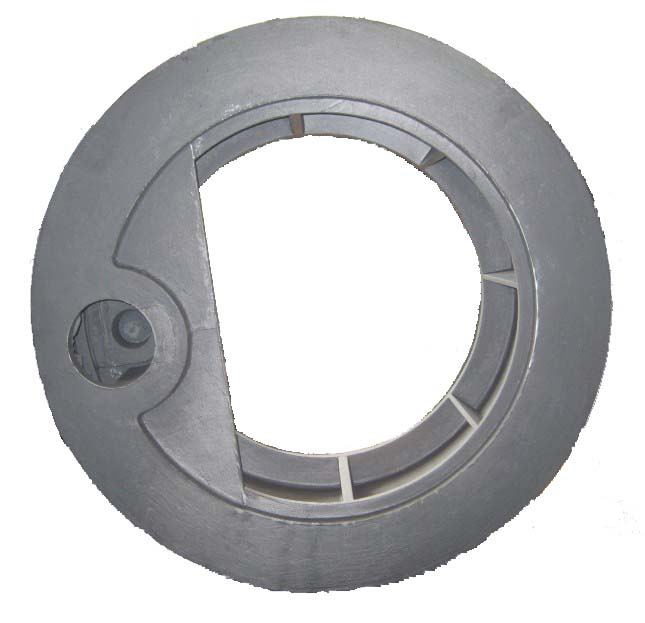

Resin Sand Casting Part

Resin Sand Casting Part
Price: Negotiable
Trade Terms: CIF
Min Order: 0.5/Ton
Pay Type: L/C,T/T,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Molding Technics: Gravity Casting
Casting Method: Sand Casting

Product Description

We offer both green sand castings and resin sand casings in both ferrous and non-ferrous materials.

Perhaps the most common green sand castings would be made from either grey iron or ductile iron. We can supply these castings from approximately 0.1Kg to approximately 15000 Kg and up to 6000mm x 2500mm x 2000mm in size for the largest part. Molding methods range from floor hand molding, jolt squeezer lines and automatic molding lines. With this variety of molding methods we are able to accommodate the weight, size and quantity the customer requires.

Steel sand castings are available both as green sand castings and resin sand castings, and are available in plain carbon, low alloy and stainless steels. In the category of sand castings the smallest available part would be approximately 2Kg while the largest would be approximately 20 tons for sand casting and 5 tons for resin sand casting. Steel castings smaller than the 2Kg range would be made as a water glass casting (see Investment Castings ).

Non-ferrous sand castings are also available. The molding process used is green sand and we can accommodate requests for castings weighing from 0.5 Kg to 100 Kg. The alloys that are available include copper base and aluminum base alloys.

Please check the technical specification sheet for all materials available.

First article layouts and spectrometer material certifications are provided with all first article samples. Specialized inspection reports can be done per customer request.
A variety of secondary operations can be performed on both types of sand castings. They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging.
Gray lron

Standard-Spec.No.&Class T.S.
σb≥
N/mm 2
Hardness

HB≤
Note:(1)Test Bar θ=30mm
(2)Chemieal composition and other requirement can be established upon written agreement between manufacturer and purchaser.
(3)The hardness values are for castings of 15~30mm thickness.
GB
China/ISO
JIS JAPAN ASTM
U.S.A.
HT200/200 FC200 CI.30 200 223
HT250/250 FC250 CI.35 250 241
HT300/300 FC300 CI.40 300 262
HT350/350 FC350 CI.50 350 277


Ductile lron

Standard-Spec.No&Class T.S.
σb≥
N/mm 2
Y.S.
σs≥%
EL
δ≥
For Reference Note:
(1)Separately cast
test bars machined
to φ 14mm from 25mm
keel blocks;
(2)Same as above
note(2)

GB
China
JIS
Japan
ASTM A536
U.S.A.
Hardness HB Micor-structure
QT400-18 FCD400-18 60-40-18 400 250 18 130-180 Ferrite(F)
QT450-10 FCD450-10   450 310 10 160-210 (F)
QT500-7 FCD500-7 65-45-12 500 320 7 170-230 (F)+Pearlite(P)
QT600-3 FCD600-3 80-55-06 600 370 3 190-270 (P)+(F)
QT700-2 FCD700-2 100-70-03 700 480 2 225-305 (P)
QT800-2 FCD800-2 100-70-03 800 480 3 245-335 (P)or tempered structure


Plain Carbon Cast Steel

Standard-Spec.No.& Grade Chemical
Composition≤%
Mechanical Properties≥ NOTE:(1)S,P≤0.04%
(2)C,Mn%can also be agreed upon by manufacturer and purchaser.
(3)Heat Treat:Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry
GB
China
JIS
Japan
ASTM
U.S.A.
C Si Mn T.S. σb
N/mm 2
Y.S. σs
N/mm 2
EL
δ%
R.A.
ψ%
ZG200-400 SC420 A27 60-30 0.2 0.5 0.8 400 200 25 40
ZG230-450 SC450 65-35 0.3 0.9 450 230 22 32
ZG270-500 SC480 70-40 0.4 500 270 18 25
ZG340-640 SCC3B A148 80-50 0.6 0.6 640 240 10 18





Aluminum-base Cast Alloy

Standard-Spec.No. Chemical Composition% Condition Mechanical
Properties≥
GB China Code China JIS Japan Alcoa (ASTM) Si Cu Mg Mn Ti Ni Al T.S.
σb
N/mm
2
Hard
ness HB
EL
σ%
ZAISi7Mg ZL
101
AC4C 356
(SG70A)
6.5-7.5   0.25-0.45       Bala
nce
F
T6
155 220 50 70 2 1
ZAISi9Mg ZL
104
AC4A 360 8.0-10.5   0.17-0.30 0.2-0.5     T6 220 70 2
ZAISi5Cu1
Mg
ZL
105
AC4D 355
(SC51A)
4.5-5.5 1.0-1.5 0.4-0.6       T6 220 70 0.5
ZAISi12Cu
11Mg1Ni1
ZL
109
AC8A A132 11.0-13.0 0.5-1.5 0.8-1.3     0.8-1.5 T6 240 100
ZAICu5Mu ZL
201
      4.5-5.3   0.60-1.0 0.15-0.35   T5 330 90 4
ZAIMg5Si1 ZL
303
    0.8-1.3   4.5-5.5 0.1-0.4     F 145 55 1

Note:(1) F-as cast;T5-Solution treat+artifical aging;T6-Solution treat+over aging


Copper-base Cast Alloy

Standard-Spec.No. Chemical Composition% Mechanical Properties≥
GB China JIS Japan ASTM U.S.A Sn Zn Pb Si Cu T.S.σb
N/mm 2
Y.S.
σ%
EL HBW Hard
ness
ZCuSn5Pb5Zn5 BC6 C83600 4.0-6.0 4.0-6.0 4.0-6.0   Balance 200 90 13 60
ZCuSn10Zn2 BC3 C90500 9.0-11.0 1.0-3.0     240 120 12 70
ZCuZn16Si4 SZBC3 C87800   Balance   2.5-4.5 79.5-81.0 390   20 100
ZCuZn40Pb2   C85700   0.5-2.5   58.0-63.0 220 120 15 80

Qingdao Donrex Co., Ltd. was established in 2001, located in Qingdao which has a important international port of China.

We are one of the leading manufacturer group of casting, stamping, forging, extrusion forming, welding, fine blanking and CNC machining services for various parts of electric appliances, telecomminucation, automotive, marine, aero, construction and other engineering industry.

We provide our customers the best-engineered solutions, low cost tooling, high quality manufacturing and rapid delivery.

We handle all the projects with quality first in mind and under strictly quality control flows through precise inspection and testing equipments and production control system to achieve the small, medium and large volume production, meanwhile, all the works are based on OEM / ODM, confidentiality and reliability.

Our buyers hail from 30 countries and regions including Europe, North America, Southeast Asia, Middle East and Australia. We sell big quantity of high quality products worth more than $10 million annually.

A lot of things may change, but our commitment to professionalism, quality and customer service won't. Contact Donrex today to begin saving time and cost.
