| Prod Model: |
AH, HH, M, SP, AF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Slurry Pump Spare Parts |
| Suitable Model: |
Ah Hh M L Sp Af G |
| OEM: |
Available |
| Pump Type: |
Horizontal, Vertical, Submersible |
| Material: |
Metal or Liner |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Low Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description
Company Information
Shijiazhuang Naipu Pump Co., Ltd Is a professional Manufacturering Enterprise of slurry pumps and pump parts, for about 30 years.
We have Model workshop, casting workshop, machining workshop, assembly workshop.
We undertake OEM order as customer's drawing
Our products are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, chemical and petroleum industries.
Main Pump Model : AH, HH M, L . SP , AF , ZG, ZGB , ZJ , G , WS , ZJQ and etc.

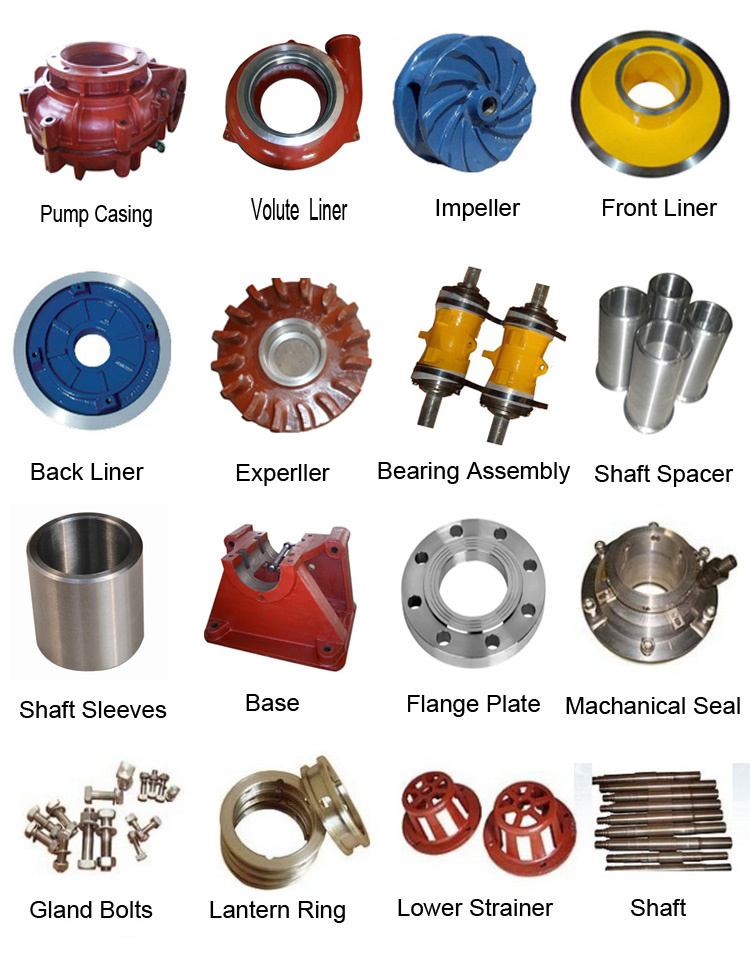

Main pump parts : Cover plate , Frame Plate, Impeller, Pump Liner , Volute Liner , Throat Bush, Frame plate Liner Insert, Back Liner , Expeller, shaft , shaft sleeve, stuffing box,base, Bearing Assembly, Shaft Spacer, base,gland assembly, lantern restrictor and so on.
Material of Construction:
|
LINERS |
IMPELLERS |
CASING |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS |
Standard |
Chrome Alloy
Natural Rubber |
Chrome Alloy
Natural Rubber |
SG Iron |
SG Iron |
Chrome Alloy
or
SG Iron |
Chrome Alloy
or
SG Iron |
SG Iron |
Rubber
and
Nitrile |
Options |
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon |
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon |
SG Iron
Various grades |
MS
Fabricated
Cast Iron |
NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151 |
NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile |
EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS |
Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton |
Our Service
1. Quick Reply
Your inquiry related to our products or prices will be replied within 12 hours.
2.We have a group of high quality technicians with rich experience who can solve everything during the whole process.
3.Guarantee quality, All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
4.Perfect after -sales .We will be responsible for the whole life period
5.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy,
Contact Us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person :Kitty Liu
Tel.:+86-311-83802338
Fax:+86-311-87162902
Mobile:+86-13032609126
Shijiazhuang, Headquarters
Add.:No.368, Xinshi North Road, Shijiazhuang, Hebei Province, China
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
