Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Casting Method: |
Special Casting |
Casting Form Material: |
Mud |
Casting Metal: |
Cast Steel |
Casting Form Usage Count: |
Disposable |
Product Description

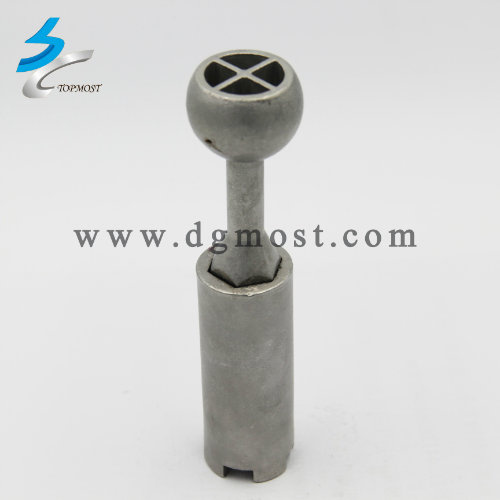

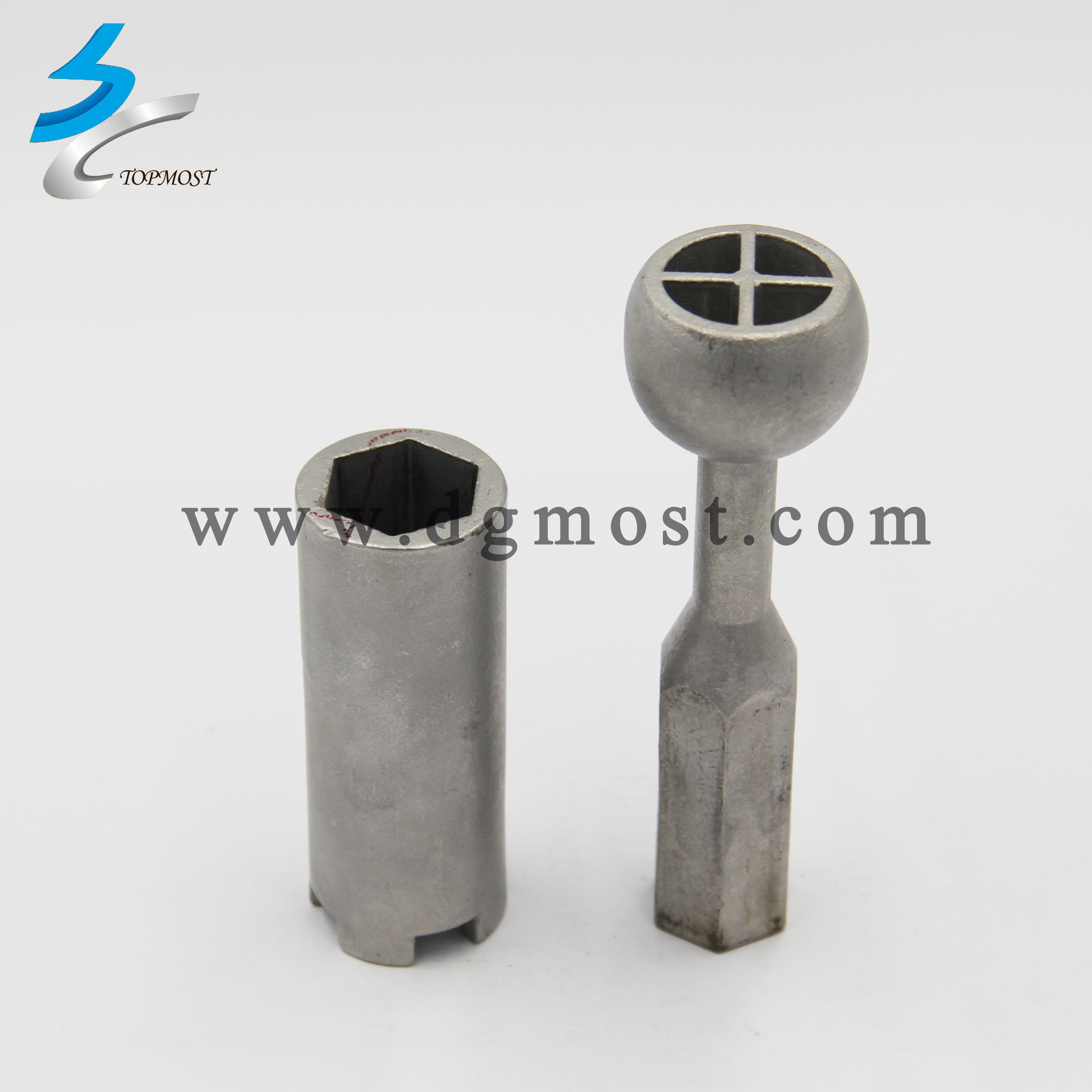

Precision Casting Stainless Steel 304/316 Metal Machine PartsProduct Details
Basic Info.
Precision Casting Stainless Steel 304/316 Metal Machine PartsModel NO.:ST-M21
Surface Preparation:Polishing
Material:Stainless steel
Delivery:30 Days After The Deposit
Port:Shenzhen/ Guangzhou
Export Markets:Global
Additional Info.
Trademark:TOPMOST
Packing:Standard Export or Customized Packing
Standard:As Per Drawing or Sample
Origin:Dongguan, China
Production Capacity:exceed 24Million Pieces Per Year
Product Description:
1. Product Name:
Precision Casting Stainless Steel 304/316 Metal Machine Parts2. Material: Parts can be cast in our very wide range of materials, including: Carbon steel, Stainless steel, Heat resisting steels, Alloys for magnetic use, etc.
3. Technique: Precision casting, Investment casting, Lost wax casting, Stainless steel precision casting

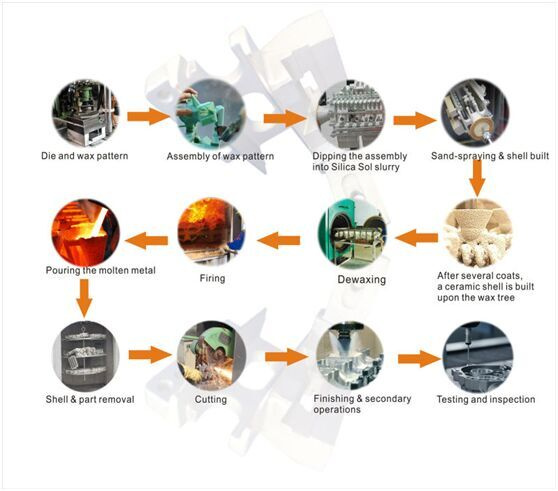

4. Process: Die making & wax pattern, Assembly of wax pattern, Dipping the assembly into Silica Sol slurry, Sand-spraying & shell built, Dewax & firing, Pouring the metal, Shell & part removal, Finishing & secondary operations
5. Rapid Prototyping: Quick, easy and economical, can take your CAD designs and turn them directly into a pattern. Metal prototypes produced with the latest technology in 3D modeling and the precision of the investment casting prototype process
6. Finish: Carefully fettled, blasted & heat-treated; Grinding, machining, polishing, chrome / zinc / nickel plating or painting
7. Heat Treatment: Quenching, Normalizing, Tempering, Annealing, etc.
8. Capabilities:
1) Precision casting capabilities: Rapid Prototyping, Vacuum Melting Furnace, Vacuum Dewaxing System
2) Machining equipment: CNC Machine ,Horizontal Machining Centers.
3) Inspection equipment: Spectrometer; Coordinate Measuring Machine (CMM); Non-destructive testing
4) Drawing capacity: PDF, Auto CAD, Solid work, JPG, Proe
10. Application: Precision Casting & Investment Casting for Automotive Parts: Rocker, Manifold Casting Valve Body Casting, Gear Shifter, Bearing Block Casting, Pump Case Casting, Water Pump Body, Side Plate of Engine, Timing Belt Pully
Starting with your initial design through to your final product, please send us your CAD file of the machined part, weldment or fabrication and Horizontal Precision will work with you to consistently exceed your requirements for service, quality, cost, and on-time delivery.
We look forward to helping you with your next project!
Technique | Precision Casting, Silica Sol Investment Castings by Wax-Lost Process |
Max.Size | 500mm |
Weight Ranges | 2g-80kg |
Tolerance | 02-1.0mm |
Casting surface roughness | Ra1.6-3.2 |
Standard | ASTM. AISI. BS. JIS. DIN. KD |
Specification | As Per your CAD drawing or samplesdfv |
Service | Quick Responsive Lead time, On time Delivery, and Superior Precision Casting Engineering and Technology Support |
Quality | Mechanical component parts produced that meet if not exceed your requirements |
Quantity | Flexible order quantities, small runs to high volume |
Advantages | Simple, High quality,Professional technical team,greater design freedom, greater alloy selection, improved surface finishes & weight reduction. |
Established in 2008, Dongguan Most Hardware Technology Co., Ltd. is located in the World famous manufacturing city-Dongguan, Guangdong, a manufacturing oriented factory focusing on lost wax casting products. In order to make sure supreme, fast production and technical service to more overseas clients, HK TOPMOST Co., Limited was set up as a division for international trade business in 2014.
The factory covers an area of 5000 square meters, with 200 staff at present, and is equipped with complete CNC machining workshop and the most advanced spectrum analyzer-BRUKER Q6. ISO9001: 2008 Quality Management System Certification was passed in 2009. All the products comply to RoHS directive in European Union. The factory has achieved computer networks in terms of internal management and information sharing.
With company development, several production divisions have been established including Precision Casting Division, Spray Nozzle Division and Bathroom Ware Division. Precision Casting Division focuses on the manufacturing, sales, development, procurement and logistics of stainless steel products including marine hardware, aerospace hardware, lock accessories, valve hardware and architectural hardware, ect. We enjoy an output capacity of over 2 million pieces per month with casting surface roughness as precise as Ra1.6-3.2 and weight range from 2g to 80kg. OEM or OCM services are offered according to client's specifications. Heat treatment, CNC machining and surface treatment services are offered as well.
Spray nozzle division was established in 2010, is the largest OEM factory in China at present. Production output over 500, 000PCS, products are widely used in the following industries: Auto making, surface treatment, coating, electroplating, PCB, textile, dust suppression, purification, pharmaceutical, chemical, paper making, aluminum, tank cleaning and steel. In addition, we can provide systematic technics for spraying solutions as well.
We pursue the principle of cooperation with integrity to offer supreme service as our business philosophy and sincerely welcome clients from all over the world to visit our factory to develop business together.
