Heat Exchanger Graphite Block

Heat Exchanger Graphite Block
Price: US $ 3600/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 400X400X1800 500X500X1800 650X400X1800mm
Bulk Density: 1.70-1.74G/Cc
Carbon Content: High-Carbon
Grade: Industrial Grade
Type: Graphite Mold
Crystal Morphology: Artificial Graphite
Forming Way: Vibration
Composition: Petroleum Coke and Pitch Coke

Product Description

Applications

- Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, etc.

- Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.

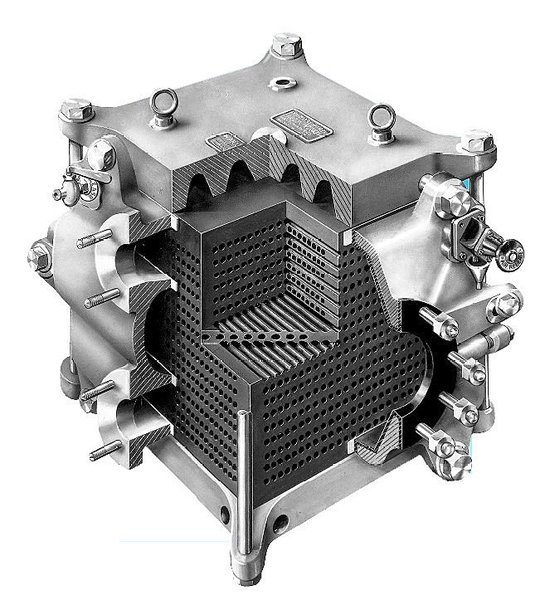

- Parts for heat exchangers.

- Crucibles for melting and reduction.

- Boats and trays for sintering, etc.


Programmable properties

- High thermal and chemical resistance.

- Good thermal conductivity.

- Low coefficient of thermal expansion.

- Minimal wettability to molten metals.

Test Item Unit JXB1 JXB2 JXB3
Electric Resistance μΩm 8.3 ≤8.5 ≤9.0
Bulk Density g/cm³ 1.72-1.74 1.70-1.72 1.68-1.70
Grain size mm 0.8 0.8 0.8
Compressive Strength M pa 40 ≥32 ≥32
Bending Strength M pa 17.5 ≥14.5 ≥14.5
Porosity % 18 ≤20 ≤22
Ash content % 0.09 ≤0.2 ≤0.3
C.T.E. 10 -6 /centigrade 2.4 ≤3.2 2.9
Size mm 400x400x1800-2600 500x500x1800-2600  650x400x1800-2600 610x610x1800-2600 760x500x1830-2000  850x400x1800-2600  950x500x1900    1120x400x2200
