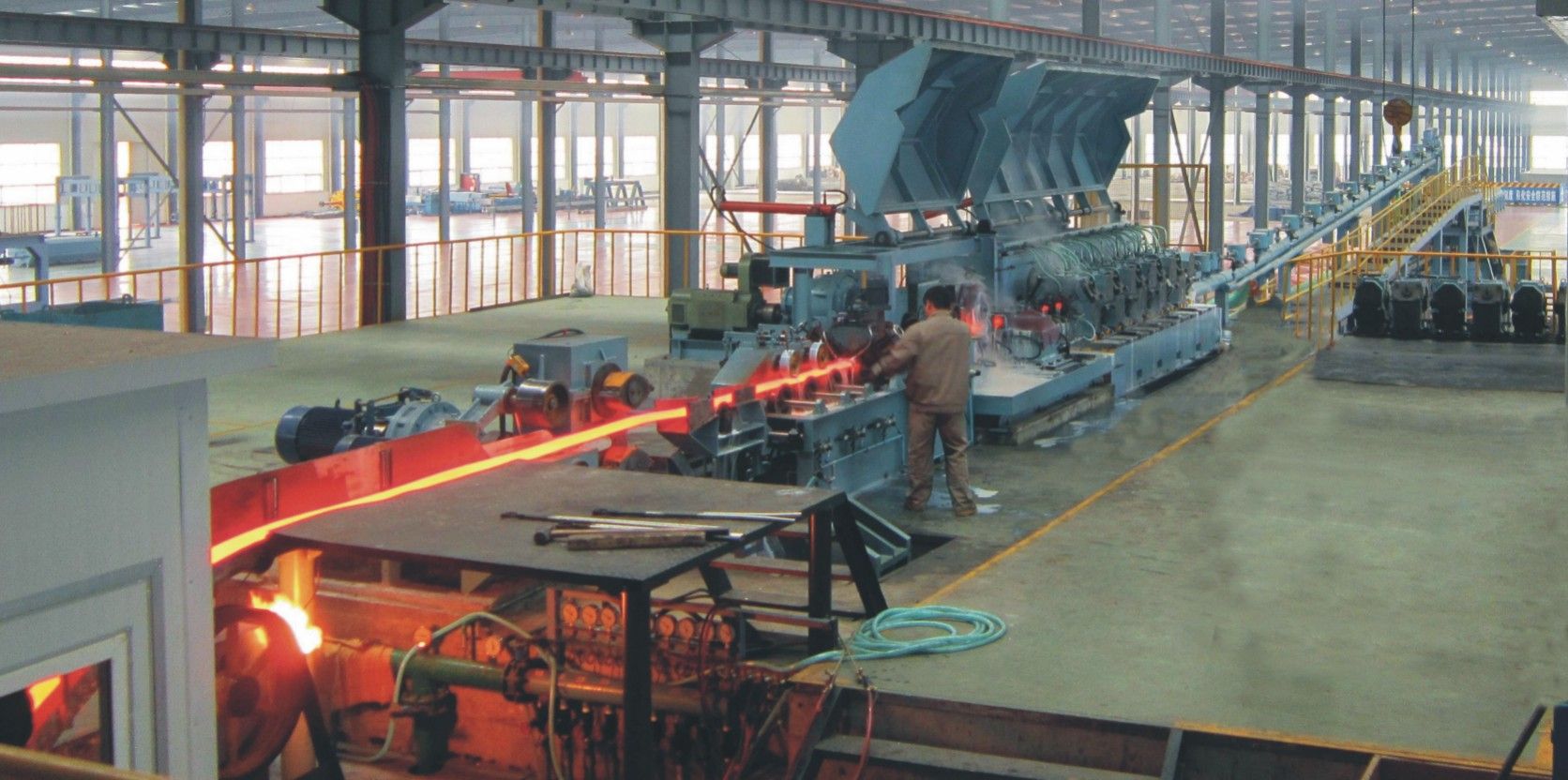

Copper Rod Continuous Casting and Rolling Line (UL+Z-1900+255/12)

Name: Copper Rod Continuous Casting and Rolling Line (UL+Z-1900+255/12)
Brand: china-castingforging.com
SKU: 611839704
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	US $ 500000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Deyang Bochuang Electrotechnical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	UL+Z-1900+255/12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application and Composition

1. This plant works to produce low-oxygen glossy copper rod in 8mm diameter by means of continuous casting and rolling process, with cathode and red copper scrap as the feedstock.

2. The plant is composed of 1 sets of reverberatory furnace with 60-ton capacity, five-wheel casting machine, drive unit, roller shears, straightener and burring unit, shaver, rolling mill, coiler, and electrical control system. If cathode is used, a melting furnace with 12-ton/hour capacity and 10-ton holding furnace are required.

Melting furnace	Type	Shaft furnace
Melting furnace	Melting rate	14 t/h
Holding furnace	Type	Rotary holding furnace
Holding furnace	Capacity	12t
Reverberatory furnace	Type	Stationary reverberatory furnace
Reverberatory furnace	Capacity	60 t or 80t or 100t
Casting machine	Casting wheel dia.	φ 1900mm
	Casting bar speed	10.17~ 13.11m /min
Roller shears	Shearing length	700mm
Roller shears	Motor	15kw(AC)
Straightener	No. of straightening roller	5
Straightener	No. of shaving tools	4
Burr shaver	No. of burr-shaving rollers	4
Burr shaver	Motor	0.75kw
Rolling mill	Horizontal or vertical two-rollers stand for roughing rolling; Three-roller stand for finish rolling
	Outlet rod dia.	φ 8 mm
	Finished rolling speed	10m /s
	Production capacity	14~16 t/h
	Main motor	450kw (DC)
Cooling and deoxidizing device for copper rod	Flow of alcoholic water	100 m 3 /h
Cooling and deoxidizing device for copper rod	Alcoholic water pump	37kw
Coiler with two baskets	Drive speed	10m /s
	coiling basket	φ 1800mm × 1500mm
	Coil's weight	3000 -5000kg

DEYANG BOCHUANG ELECTROTECHNICAL EQUIPMENT Co., Ltd

COMPANY PROFILE

Deyang Bochuang Electrotechnical Equipment Co., Ltd is not only the cooperative partner of global wire and cable industry, but also the pioneer manufacturer of wire and cables equipments in China, DOFAMABC Company for short. It is located in Tianyuan development zone, the base of great technical equipment manufacturing industry in Deyang, China. Reformed from Orient Electrotechnical Company, now it is a pace-setting technologically advanced enterprise specialized in research, developing, manufacture, sale and service of the digital wire and cable equipments. It is an influential specialized manufacturing enterprise with excellent research, inspection, production equipments and workshop. It is also the research center and manufacturing base for digital wire and cable equipments in China.

Deyang Bochuang Electrotechnical Equipment Co., Ltd adopts ISO and IEC International Standard to research and manufacture products and passes ISO9001 Quality System Certification and CE Certification. Strong technical force comes from the previous company's experts who engage in product research and design for years with wide professional technical knowledge and rich practical experience, also some senior engineers for business and technical service. There are 70% technicians occupied in all of employees, leading the market trend with its technical force.

Bochuang has the aims "base on market, face to customer and constant innovation", devoting the application of high-tech on wire and cable equipments. The key of products are four series over 50 in total, the series of copper rod continuous casting & rolling line, aluminum rod continuous casting & rolling line, aluminum alloy rod continuous casting & rolling line, the series of copper wire, aluminum wire, aluminum alloy wire breakdown/intermediate drawing/fine drawing machine and the series of frame strander, tubular strander, the series of continuous conform production line for aluminum tube and continuous conform production line for copper material, lead sheathing extruder, some of them obtain the national patent certificates, the invention awards and the province project innovation fund which make great contributions to the development of national wire and cable industry.

We hope to cooperate with global wire and cable companies sincerely to get mutual development. We will expedite technical innovation, constantly update products to make customer feel more reliable and transfer our technical, high quality and service advantages into the competitive advantages of the users to make them keep the leading position and work together for the improvement of Chinese wire and cable equipment industry.
