| Prod Model: |
FS-33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Size: |
Customer Designed |
| Forging Product: |
Brass Valve |
| Raw Material: |
Scrap or Brass Rod |
| Provide Scope: |
Whole Line Solution |
| Power: |
380V, 50Hz |
| Forging Forming Method: |
Mold Forging |
Product Description
Brass valve production line
1. Prodution processing flow
Brass rodSolutions for 50-180 ton/month production line
(5-60mm)
1 75kw melting furnace + 75kw holding furnace
Specification:
Model: 300
Power: 75+75(kw)
Melting rate: 300kg/h
Capacity: 1+1.8(ton)
Quantity: 1 unit
2 Die casting machine
Specification:
Model: SYO-60
Speed: 0-0.035m/s
Casting diameter: 5-60mm
Quantity: 2 set
3 Pneumatic sawing machine
Specification:
Model: Q60
Cutting size: Φ 5-60mm
Speed: 10s/PCS
Power: 3kw
Air pressure: 0-1 Mpa
Quantity: 2 set
4 Heading machine
Specification:
Model: CZ-A
Heading size: Φ 5-20mm
Heading length: 50-120mm
Cutter: 4 set
Motor power: 2.2kw
Quantity: 1 set
5 Heading machine
Specification:
Model: CZ-C
Heading size: Φ 15-60mm
Heading length: 50-120mm
Cutter: 4 set
Motor power: 4kw
Quantity: 1 set
6 Chain type double peeling machine
Specification:
Model: LG-250(A)(B)
Peeling size: Φ 5-15mm
Working length: 3m
Speed: 0.4m/s
Power: 5.5kw
Quantity: 1 set
7 Peeling machine
Specification:
Model: 5T
Peeling size: Φ 15-60mm
Working length: 3m
Speed: 15-25m/min
Power: 18.5kw
Quantity: 1 set
8 Hexagon straightening machine
Specification:
Model: YT-11C
Straightening size: S10-40mm
Precision: 0.2mm/100mm
Motor power: 5.5
Quantity: 1 set
9 Hexagon straightening machine
Specification:
Model: YT-11D
Straightening size: S40-60mm
Precision: 0.2mm/100mm
Motor power: 7.5 kw
Quantity: 1 set
10 Two roller straightening machine
Specification:
Model: TP2C
Straightening size: Φ 15-60mm
Precision: 0.2mm/100mm
Motor power: 11kw
Quantity: 1 set
11 Two roller straightening machine
Specification:
Model: TP2B
Straightening size: Φ 5-20mm
Precision: 0.1mm/100mm
Motor power: 7.5kw
Quantity: 1 set
Machining procession solutions below:
Item
Specification
Quality
Brass rod auto
Slicing machine
Ø 8-45mm
One set
Heating furnace(kerosine powered )
One unit

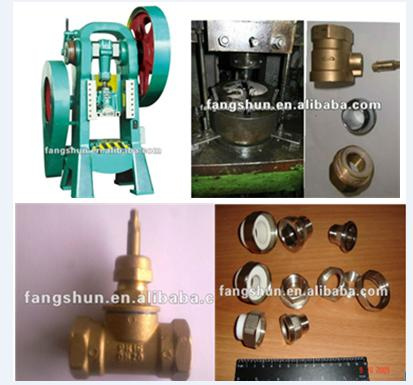

Hot forging machine
125T
One set
Mold bracket(main)
1/2" valve
One set
Mold core(main)
One set
Trimming mold(main)
One set
Spare parts
Mold bracket(brass nut)
One set
Mold core(brass nut)
One set
Hot forging machine
40T
One set
Mold core
3/4" valve
One set
Trimming mold
One set
Mold core(brass nut)
One set
Sanding machine
One set
CNC lathe
Two set
Brass rod CNC lathe
Two set
Milling machine(core)
Two set
Assembling line(4-6 person)
One set
Inspection unit
Two set
Packing line
One set
Finished products:
Ball valve globe valve
Gate valve check valve
Brass nut, brass bolt
Our company are specializing in brass products processing machine and we have more than 18 years old exprerience on this line, we have so many clients in foreign such as Egypt, India, Indoenesia, Vietnam, Algerial, Iraq, Jordan etc...We can provide you complete line machines and technology, pls feel free to contact us if you are interested.
Pls feel free to contact us directly through below detail:
Miss Sofia
Cellphone: +86-13923243770
Sofia(+0086-13923243770)
Our company, founded in 1994, is located in Foshan City, Guangdong Province, in the Pearl River Delta of Nanhai. Our factory covers a building area of 4000 square meters, with all kinds of mechanical processing equipment. Engaged in research and development, we are a professional manufacturer of many kinds of copper rod, brass and lead casting machines, straightening machines, straightening and polishing machines, hydromatic drawlooms, copper and aluminum melting furnaces, temperature holding furnaces and other production equipment. Our company regards environmental protection, energy conservation, and non-pollution as the important index of electric furnace production equipment. We provide price inquiries, technical consultation, training, maintenance and reasonable equipment matching guidance for a new copper factory.
After several years' effort, our factory has developed the following new equipment: Conveyor belt multiple absorbing iron machines, vibration absorbing iron machines, high efficiency low loss combo furnaces, vertical type double acting lead casting machines, automatic peeling machines (no need for heading), automatic combined drawing machines, copper ash cleaning re-blowing production lines, aluminum casting machines, and vacuum casting heading machines for profiled rods (one-time heading).
Our factory always adheres to the principle of "improvement, inspiring innovation, quality first, customer first", and is dedicated to the general customer service with high quality services and low prices. We welcome clients from at home and abroad to come to negotiate business with us. We are willing to work with you.
