| Prod Model: |
310 highway guardrail roll forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Building Machine |
Product Description
310 highway guardrail roll forming machine
CNC control system PLC control Taiwan taida
LCD screen 5.7inch LCD, including English and Chinese
Use automatic PLC control system, accurate control out of the plate size, linking piece precision, rolling speed

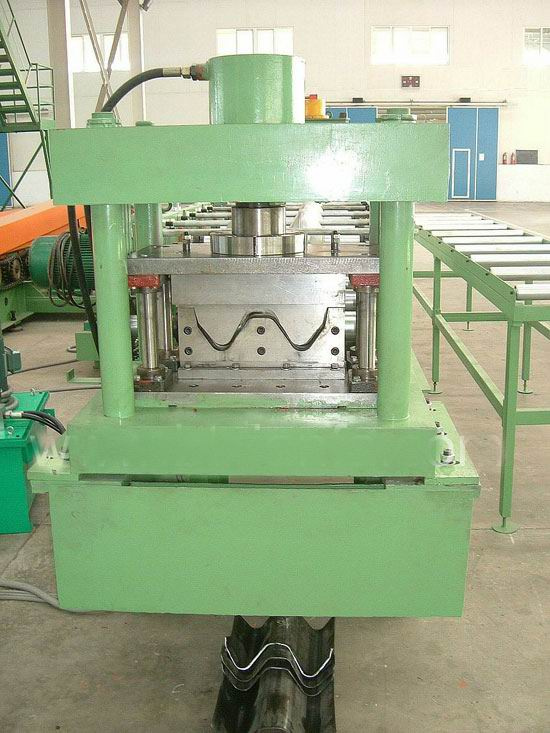

Hydraulic cutting system Shearing mould material Cr12 quenching process
Hydraulic shearing power 15 kw
Working principle
Ues latest shearing system,
Use of gear pump working principle.
The system including hydraulic pumpstation1 set, hydraulic oil cylinder 1 set, hydraulic oil tube 2 PCS, electromagnetic valve 2 sets
|
Hydraulic uncoiler |
The biggest weight of the roller |
8000kg |
|
The biggest diameter of the roller |
2200mm |
|
The biggest width of roller |
500mm |
|
Hydraulic control system(Automatic hydraulic tensioning within) |
Hydraulic power: 3KW |
|
Oil cylinder diameter: 120mm |
|
Work pressure: 10Mpa |
|
|
model |
SB 310 |
|
size |
17500mm*1200mm*1500mm |
|
weight |
120000 kg |
|
Host frame |
350 H steel welding |
|
Row of molding |
22 row |
|
Axle material |
45# steel |
|
Axle size |
Diameter 90 |
|
Molding pressure roller materials |
GCR15 quenching HRC58° -62° |
|
Transmission way |
chain |
|
Chain size |
2 inch |
|
Equipment total power |
30 kw |
|
Main power: |
15 kw |
|
Twist off cutting ower |
15 kw |
|
Speed |
10-12m/min |
|
The sheet thickness |
2.5-3.0mm |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
