30tph Rotary Drum Dryer for Sand

30tph Rotary Drum Dryer for Sand
Price: US $ 50000-120000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Dry Sand, Slag, Limestone
Capacity: 60tph
Fuel: Gas, Oil, Coal
Powder: 44kw
Dust Collector: Cyclone and Tank Dust Collector
Moisture Before Drying: 15%
Moisture After Drying: <0.5%
Output Temperature: 50-65°c
Structure: Rotary Type Drier
Operational Method: Continuous
Operation Pressure: Atmospheric Dryer
Heating Mode: Transmission
Movement Way: Combined

Product Description

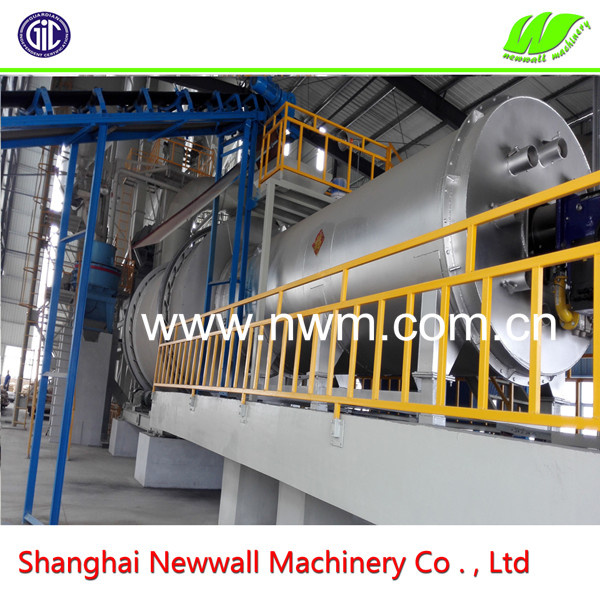

Three drum sand dryer

The three drum sand dryer can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.
the heat efficiency of three drum sand dryer can be up to 80%. shorter length, it's easy to arrange the work site. gas burner is clean and save space.

General description:

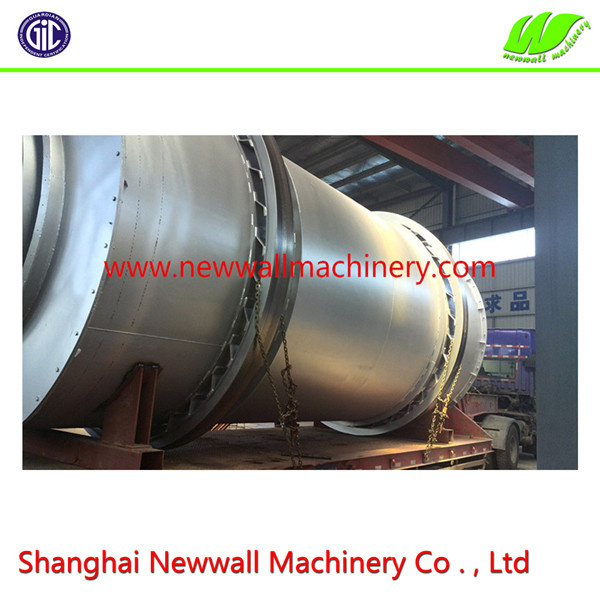

 The dryer is assembled by three concentric-cylinders which halved joint with different diameters. Computer optimized stock
guide and lifting blade with different angles and spacing are installed inside the
cylinder, the structure can ensure that the material being dried runs along the
 direction of screw under the impact of gravitation, stay sufficient time and good
dispersion in the cylinder to let the material exchange with the heat airflow from
 air heating furnace inside of the cylinder. The special three-cylinder structure
makes the inner cylinder and middle cylinder being surrounded by the outer
cylinder to form a self-contained thermal insulation system, the radiated heat
from surface of inner and middle cylinder assist heat the material in the outer
 cylinder, but the outer cylinder is at the low temperature end, so the heat
dissipation area and heat loss is reduced significantly.


It has the following character:
1. High heat efficient, can be up to 80%, increase 40% heating efficiency than single drum dryer.
2. Small cover space
3. Can cool the material
4. Can burn gas, oil, coal or biomass fuel
Technical parameters:

modelPower (kw)Outside dimension (mm)
LCH-153X44860X2630X2960
LCH-305.5X46330X3230X3600
LCH-407.5X46970X3410X3790
LCH-5011X48120X3660X4020
LCH-6011X48620X3660X4020
LCH-8015X49120X3860X4220


Shanghai Newwall Machinery Co., Ltd was found in 2012, and is the Changzhou

Longcheng Powder equipment Co., Ltd independent investment company

Engaged in foreign trade import and export.

Changzhou Longcheng powder equipment Co., Ltd locates in Changzhou, two and

Half hours by car from Shanghai. It has started to develop and produce of dry mixed

Mortar equipment since 2003, It is an earlier professional manufacturer of dry mixed

Mortar equipments in China.

It turns into a hightech enterprise integrated with technology development, manufacturing

And installation, presale support and after service from a company whole produce single

Machine.

To improve product quality, we set up a research and development center of new material

Technology and equipment with Changzhou Institute of Engineering Technology jointly, it

Specially develop dry mortar formulation, production technology and related equipments based

On different raw materials and technical requirements. Till now, we have finished over 100

Projects at home and abroad and all get favorable comment. The three tube dryer, dry mortar

Mixer and control system are awarded the patent and has own intellectual property right.

Longcheng company was assessed National dry mortar production and related equipment

Manufacturing approved enterprise in 2009. During our entrepreneurship and development, we

Adhere to our management policy is quality is first, customer is supreme, honesty is base.

Longcheng company anticipated hand in hand cooperates with you, altogether creates magnificently.
