1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Features:

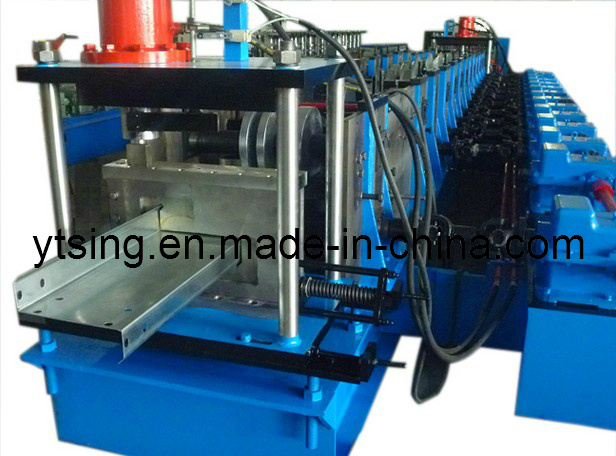

1. The Z purlin forming machine can produce purlin from 100mm width. The thickness can usually be formed at 1.5-3.0mm and the lip angle can be at 45 or 90 degrees.
2. According to your requirements, the driving system of the Z purlin forming machine uses the gimbal or chain driving.
3. The Z purlin forming machine can be designed as a torri stand structure or metal wall structure.
4. The Z purlin forming machine uses a PLC control system or AMS control system.
Application:
The products of the Z purlin forming machine have excellent anti-bending property and are easy to install. They are used as the supporters of roofing and wall construction in factories, warehouses, garages, exhibition centers, cinemas, gardens, etc.
Configurations:
The Z purlin forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet and product run out table.
We can also design C purlin roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
C Purlin Roll Forming Machine |
|
Number of stations |
17-23 sets |
|
Thickness |
1.5-3.0mm |
|
Main power |
15KW |
|
Shipment packing |
one 40FT container |
|
Forming speed |
18-30mtr./min(Not include shear) |
|
Productivity |
Products as the drawing |
|
Man power required |
One operator with one assistant |
|
Set up time |
15 mins |
|
Working hours per day |
8 to 16 |
|
Line direction |
Left to right while facing operator panel |
|
Approximate machine height |
1.5M |
|
Complete Line Consist Of |
|
Passive/Hydraulic Single /Double Uncoiler |
|
Infeeding applicator |
|
Roll forming machine unit |
|
Hydraulic press |
|
Hydraulic automatic cutting unit |
|
Output table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
