Our factory has been professional to produce all kinds of roll forming machine for many years and we have exported our products to USA, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia, Nigria, Camaroon Duala, Ghana, India, Venezuela and some other MID-east countries. Hence, our experiece is rich enough to make us take first position of this field. In addition, we can design, produce and transport the machine as your any request.

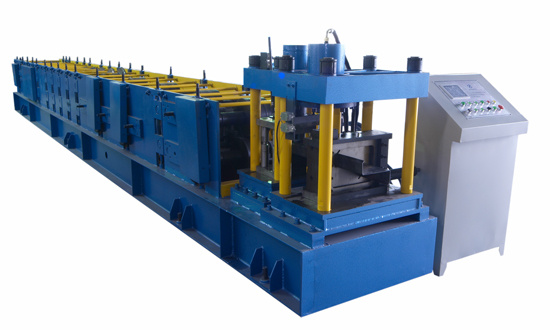

Technological parameters:
1. Forming size: 1000mm*2000mm*1000mm
2. The chart of process flow
Decoiling_active feeding (put the coil strip into the first feeding roller)_leveling (4 rollers)_roll forming _punching_straightening _mold twisting_product to stand
3. Technical specifications
1) Manual inner tight decoiler
A. Coil inner diameter: 500mm-600mm
B. Maximum width of coiling: 1250mm
C. Maximum weight of loading: 5000 kg
2) Main forming machine
A. Material of shaft: 45# steel adjustable treatment out diameter: φ 80
B. Material of roller: Cr 15, quenched treatment HRC58-60
C. Number of leveling rollers: 4
D. Number of forming rollers: 12 pairs of main rollers, 2 pairs of feeding rollers. 6 pairs of side rollers
E. Main frame: 350 H steel thickness of medium plate: 20mm
F. Transportation system: Chain transportation
Thickness of chain: 2 inch
G. Main motor power: 11 KW, 7# cycloidal-pin wheel speed reducer
H. Forming speed: 8-10m/min
I. Punching: According to drawing, fully adjustable back and front, left and right
J. Dimension: 10.5*1.7*1.2
3) Hydraulic cutting
A. Material of blade and punch: Cr12, heat treatment 60-62
B. Cutting system: Adopt advanced hydraulic drive. After forming automatic cut, no distort no wasting, high safe factor. ( main motor stop cutting)
4) Electrical system
A. Screen display: 5.7 inch Taida touch screen
B. Main computer(PLC): Taida DVP14ES
Packing
Standard or nude package
Delivery time
7-30 days after recieving deposit
Payment terms
T/T, 30% deposit when contract signed, and 70% balance before consignment.
Products warranty: 12 month, and we will provide the technical support for the whole life of the equipment
Our factory has been professional to produce all kinds of roll forming machine for many years and we have exported our products to USA, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia, Nigria, Camaroon Duala, Ghana, India, Venezuela and some other MID-east countries. Hence, our experiece is rich enough to make us take first position of this field. In addition, we can design, produce and transport the machine as your any request. Looking forward to cooperate with you.
