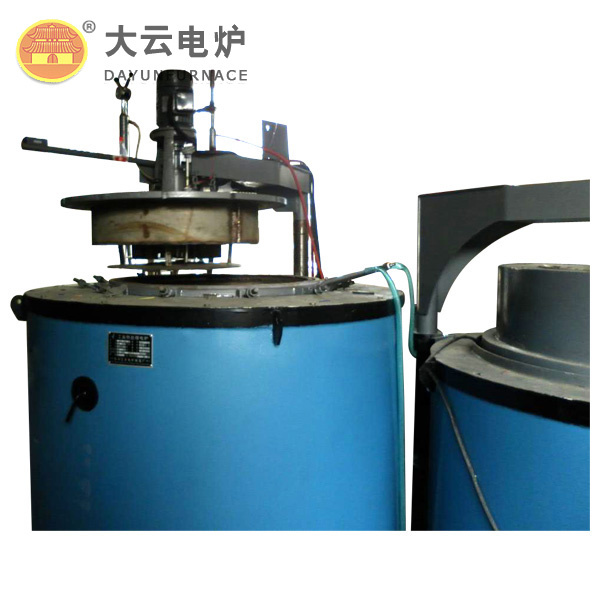

Well type nitriding furnace: Nitriding of steel parts, auto cranked shaft, auto piston ring, and molds.
The RN series nitriding furnace is cyclic energy-saving furnace, mainly used for nitriding of steel parts, auto cranked shaft, auto piston ring, and molds.
1) The furnace has hot air circulation device, unifying the temperature and atmosphere inside the furnace.
2) The protective atmosphere keeps the workpieces from misshappening or oxidation.
3) The furnace cover is lifted by the electrical hydraulic device.
4) The furnace inner tank, loading basket, and fan are made of heat resistant alloy steel.
5) The furnace has fast cooling device.
6) The furnace has interlock protection device.
To meet different requirements, we offer tailor-made service to our customer.
|
Model |
Rated power (kw) |
Power |
Working Size
(dia*height) |
Empty furnace
temperature
rising time (h) |
Loading
capacity (kg) |
|
Voltage (V) |
Phase |
|
RN-20-6 |
20 |
380 |
3 |
400× 500 |
≤ 1 |
100 |
|
RN-35-6 |
35 |
380 |
3 |
500× 650 |
≤ 1 |
200 |
|
RN-60-6 |
60 |
380 |
3 |
700× 900 |
1 |
400 |
|
RN-75-6 |
75 |
380 |
3 |
700× 1250 |
1.5 |
550 |
|
RN-80-6 |
80 |
380 |
3 |
900× 1000 |
1.5 |
600 |
|
RN-100-6 |
100 |
380 |
3 |
700× 1800 |
1.5 |
800 |
|
RN-120-6 |
120 |
380 |
3 |
900× 2000 |
2 |
1200 |
|
RN-150-6 |
150 |
380 |
3 |
700× 4000 |
2.5 |
2000 |
|
RN-210-6 |
210 |
380 |
3 |
900× 3500 |
2.5 |
3000 |
|
RN-280-6 |
280 |
380 |
3 |
900× 5000 |
3 |
3000 |
|
RN-330-6 |
330 |
380 |
3 |
900× 6000 |
3 |
4000 |
|
RN-500-6 |
500 |
380 |
3 |
1100× 9000 |
5 |
6000 |
