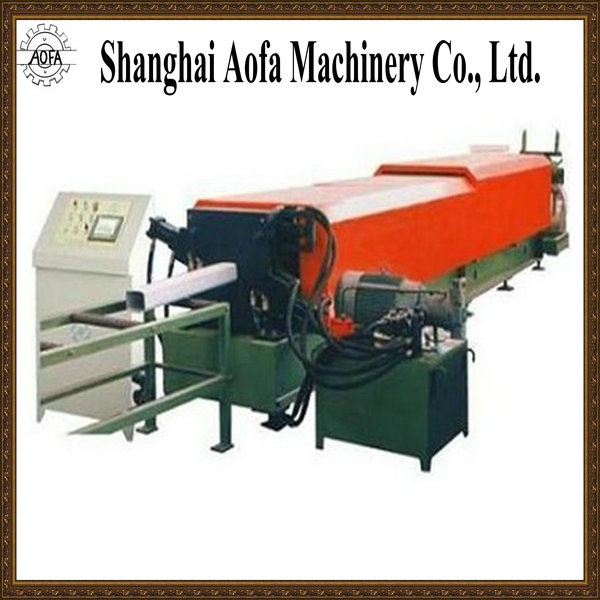

Water Channel Making Roll Forming Machine (AF-R50)

Water Channel Making Roll Forming Machine (AF-R50)
Price: US $ 32000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Shanghai Aofa Machinery Limited Company
Showroom Product Company Profile
Water channel making roll forming machine

Roll forming machine, water channel forming machine, gutter forming machine, round pipe roll forming machine, square pipe forming machine

Specifications
1. Gutter roll forming machine
2. Round or Square Gutter & Water Channel Machine
3. C shape water channel forming machines
Detailed technical dates of Main forming machine:
Machine components:
1. Decoiler
2. Roll forming machine
3. Cutting device
4. Output table
5. Control system
6. Oil pump

Working flow:
Decoiler---------feeding and guiding------roll forming---------cutting--------finished product
Technical description

No.

                Spc.


1

Suitable to process

Color steel plate


2

Width of the plate

410mm


3

Rollers

15rows


4

Main power

4kw


5

Hydraulic

5kw


6

Thickness of the plate

0.3-0.6mm


7

Productivity

8-10m/min


8

Diameter of the roller

Φ70mm


9

Roller material

45# steel polished and coated with chrome HRC5 5 -60°


10
 		 Shaft material
high grade No.45 steel after treatment


12
 		 Blade material
Cr12 steel after treatment


13

Voltage

380V 50Hz 3phases


14

Hydraulic

40#


15

Processing precision

Within 2.00mm


16

Control system

PLC Frequency Control System with touch screen


Prod Model: AF-R50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Water Channel Making Roll Forming Machine
Machine Color: as Require
Machine Size: 8m*1.2m*1.2m
Machine Weight: 6tons
Control System: PLC
Cutting: Hydraulic
Drive: Chain
Materialthickness: 0.8-1.2mm
Speed: 8-12m/Min
Delivery Time: 40days
Forging Forming Method: Mold Forging
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
