Product |
Die casting/Sand castingsGravity casting |
Brabd Name |
XINMEIDA |
Type |
OEM die/sand/gravity/Low pressure die casting, machine spare part, CNC machining parts |
Colors |
As customer's requirements |
Material |
aluminum, steel, copper, plastic, carbon steel, nylon, bronze, solder alloy, HSS, tool steels or as per your requests |
Surface treatment |
Polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, Chrome plating, mirror polishing |
Package |
Carton Box with Pallet/Wooden Box/Steel Pallet |
MOQ |
5000pcs and accept sample order |
Lead time |
3-7days for sample order,20-30days for bulk order |
Payment terms |
T/T,L/C,Western,Union,Paypal.
|
Q. What is Die Casting? How is it different from other "casting" process?
"Die casting is the process of forcing molten metal under high pressure into mold cavities (which are machined into dies). Most die castings are made from non-ferrous metals." (source: Wikipedia). It's known as "pressure die casting" in Europe.
"Gravity casting" (a.k.a. "permanent mold casting" in USA and Canada) uses gravity to fill the mold.
Q. I don't have experience desiging parts for die casting, and want to bring existing machined parts to die casting. What should I know?
Here are some basic design guidelines for die casting parts:
1.Even wall thickness.
2.Roudning of all edges and corners.
3.Smooth blending and continuity of all the features.
We will provide additional design modifcation suggestions to make sure your parts are casted successfully.
Q. Can fasteners or hardware be installed on the die casted parts?
Yes, we can put PEM studs, nuts, Southco fasteners, or hardware like McMaster-Carr components orinserts to the casted parts.
Q. We are new to the die casting process, where should we start?
You can start by providing the part's 2D and 3D drawings to us. We can provide Design For Manufacture (DFM) service for you.
Q. What information do you need in order to provide an accurate quote? How soon can I get a quote?
Please provide us with the part's 3D CAD drawings (such as IGES, STEP, or X_T). We can also quote based on 2D drawings (in DWG, DXF, or even PDF format [but with weight information]). We can also import CAD files directly from popular CAD software, such as Pro/ENGINEER, UGS, Catia, and Solid Edge. In addition, we need the production information listed in our request for quote form. Quoting turnaorund is typically within a week, and can be even sooner if there is special timing constraint.
Q. How do customers choose the right die casting alloy: magnesium, aluminum, or zinc?
Magnesium has a density of 1.74 g/cm³, and is the lightest structural metal in common use. Aluminium has a density of about 2.71 g/cm³, and is the most widely used alloy for castings worldwide. Zinc offers a wide range of excellent physical and mechanical properties, and can be used to achieve thinner sections in the parts.
Q. How do customers specifiy the color we need painted on the die casted parts?
You can specify your color by using RAL or Pantone color codes. If you don't have the color code, you can send us a color chip or a color sample for us to come up with a matching color chip.
Q. What is magnesium?
Magnesium is: among 1) the lightest of all metals (63% of aluminum, 38% of titanium); 2) stronger than engineering plastics; 3) 100 times better in heat dissipation than plastics; 4) electromagnetic-shielding; 5) best in vibration absorption of all metals; 6) environmentally safe (non-hazardous and recyclable); 7) easy to machine; 8) abundant in supply (sixth most abundant on earth).
Jiangsu XinmeidaMetal Casting Co., Ltd. (Changzhou Wujin Xinda Metal Casting Co., Ltd. ) Is located at Lijia Town, Changzhou, provincial pivot central town. Here is nearby new Chang-Cao Highway and is 8 km away from Xi-Yi Expressway, 10 km, Yanjiang Expressway, 5km, No. 312 National Highway and 20km, Shanghai-Nanjing Expressway. In a word, the traffic is very convenient and the geographic position is very superior.
The company is a large scale enterprise that is good at aluminum alloy die-casting, heavy foundry and integrates research and development of product, mould design, die-casting, fine processing and surface treatment in its one body.
The company covers an area about 30000 square meters and holds 10000 square meters of modern factory's building. At present the company has more 200 of staff and works. Of them more 40 are technicians who possess middle or senior professional title and more 10 are engineers who are engaged in foundry, mould design, fine processing as well as surface treatment.

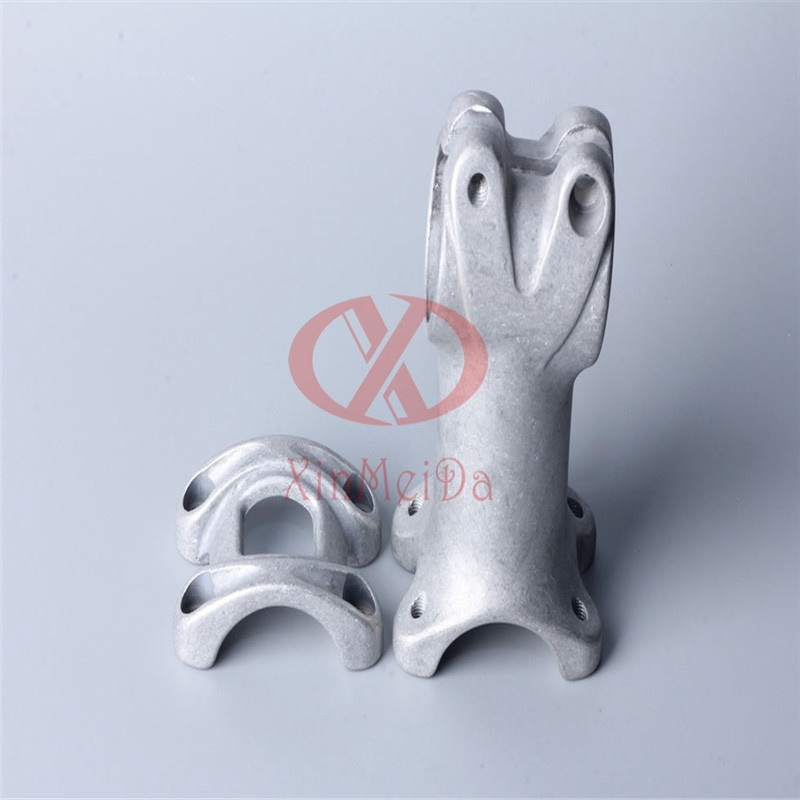

Relay on superior equipment, powerful technical force and exquisite processing technology, the company has produced series high quality bike parts. Main products are as follows: Bike series: Front fork, shoulder cover, aluminum bind, generator hub, handlebar seat tube, all kinds of bike, rubber plastics protective sheath; Baby carrier series: Aluminum cover of baby carrier, connection rod of baby carrier, connection part as well as automobile parts, computer parts, case of industrial sartorius, bracket of liquid crystal TV set and so on.
The company has introduced series equipment form foundry to fine processing. At present the company has 12 sets of die-casting machine in which 3 sets are national famous brand Lijing die casting machine, 2 sets of full foundational NC lathe, 3 sets of full functional NC drill press, 13 sets of economic type NC lathe, 5 sets of general lathe, T6 aluminum alloy heat treatment equipment as well as several ten sets of shot blasting machine and vibration muller, hundred sets of mini machine tool, polishing machine, drill press, HB sclerometer, infrared ray temperature tester and so on series equipment.
In order to guarantee quality and quantity, more ten processing production line are set up. Meanwhile with general manager as core, managers of each department as principal of special item, each monitor as supervisor of production line, staff ad workers will check its own product and special inspector will inspect completely and the department of quality inspection will carry out sampling inspection. In this way strict production line management and quality management system have been formed.
The company audits strictly raw material warehousing. The department of quality inspection checks up strictly the certificate of quality for raw material and uses spectrum analyzer (made in Germany) to carry out inspection and reject disqualification raw material. Main outsourcing part carries out the requirement of quality. The company exploits international market actively and unites with several ten powerful Taiwan JV and Japan JV enterprises as well as foreign trade imported and exported company. 80% of products are bought back by Taiwan, Hong Kong, Japan as well as Europe and America market. The company has realized great achievement of doubling total output value for continuous four years. It lays down firm foundation for the company to take root domestic market and face international market. Based on "Create First-rate Enterprise, Produce First-rate Product, Quality is the Life of Enterprise, Occupy Market with Quality and Price", the company will serve customers and society and develop and walk up to the world with wide customers together.
