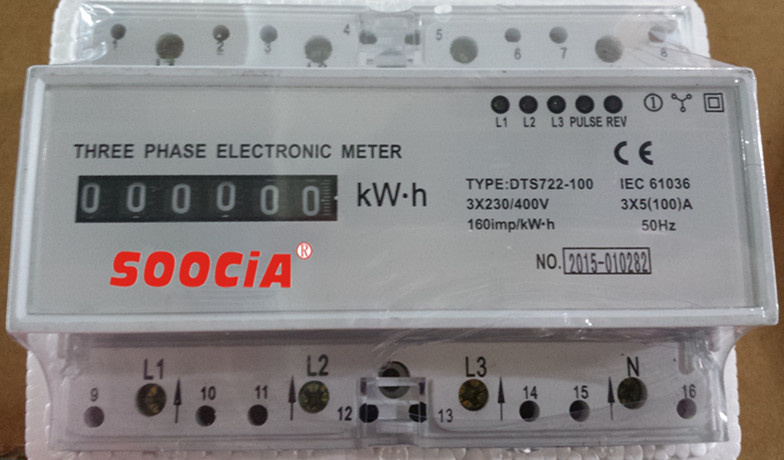

Three Phase Electric DIN-Rail Meter
| Price: |
US $ 33-34/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
Specifications1)DTS722 energy meter din rail energy meter 2)Output:RS485 3)CE,CB,ISO9001,14001,IEC 4)OEM The DTS722 type three-phase watt-hour meter is a kind of induction type meter,which is applicable to measure the rated frequency 50/60Hz and power loss in electrified-wire netting. The meter has novel design, rational structure and features of highoverload, low power loss and long life etc. Function and features1 Sub-closed iron core2 The die-casting frame is made of alloy aluminum, to assure the magnetic line stably and reliably. 3 Meter bearing has three kinds, may select dual jewel, magnetic thrust or magnetic float;4 May select 5+1 digits or 5 digits register; | Type | Accuracy | Rated voltage (V) | Rated current (A) | Overload capacity | Starting current | Insulation performance |
| DTS722 | 1 or 2 | 3x100V,3x380V,
3x220/380V,3x57.7/100V | 3x1.5(6),3x5(20),5(30),3x10(40),
3x15(60),3x20(80),3x30(100), | 4~6Ib | 0.5%Ib | AC volation 2kV 50V 1 min impulse voltage 6kV |
| Prod Model: |
DTS722 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LCD |
| Accuracy Class: |
1.0 or 2.0s |
| Rated Voltage: |
3X100V,3X380V,3X220/380V,3X57.7/100V |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Reactive Energy Meter |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
