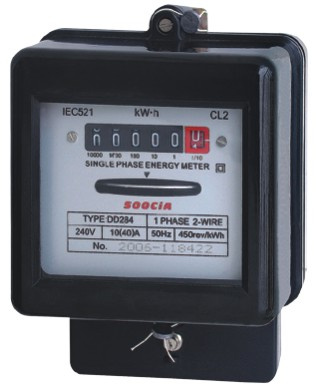

DD284 type single-phase active watt-hour meter
1.Brief introduction of product
The DD284 type single-phase watt-hour meter is a kind of induction meter, which is applicable to measure the rated frequency 50Hz and measurement of active electric energy in single-phase AC electric net. All technical targets are completely conformed to national standard GB/T 17215.311-2008class 0.5, 1 and 2 AC active watt-hour meter.
2.Function and features
-The meter has separable iron core structure
-The hearing has three kinds:single-jewel, dual jewel, magnetic floating
-The case has three kinds:Aluminum, plastic and glass
-The die-casting frame is alloy aluminum with excellent mechanical strength.
3.Main Technical Data
Type:DD282, DD284
Accuracy:2
Rated Voltage:220~240
Rated Current(A):2(4),2.5(5),3(6),5(10),10(20),20(40), 20(80)
Overload capacity:200%Ib 400%Ib
Starting Current:0.5%Ib
Insulation Performance:AC voltage 2KV for 1min impulse voltage 6 KV
