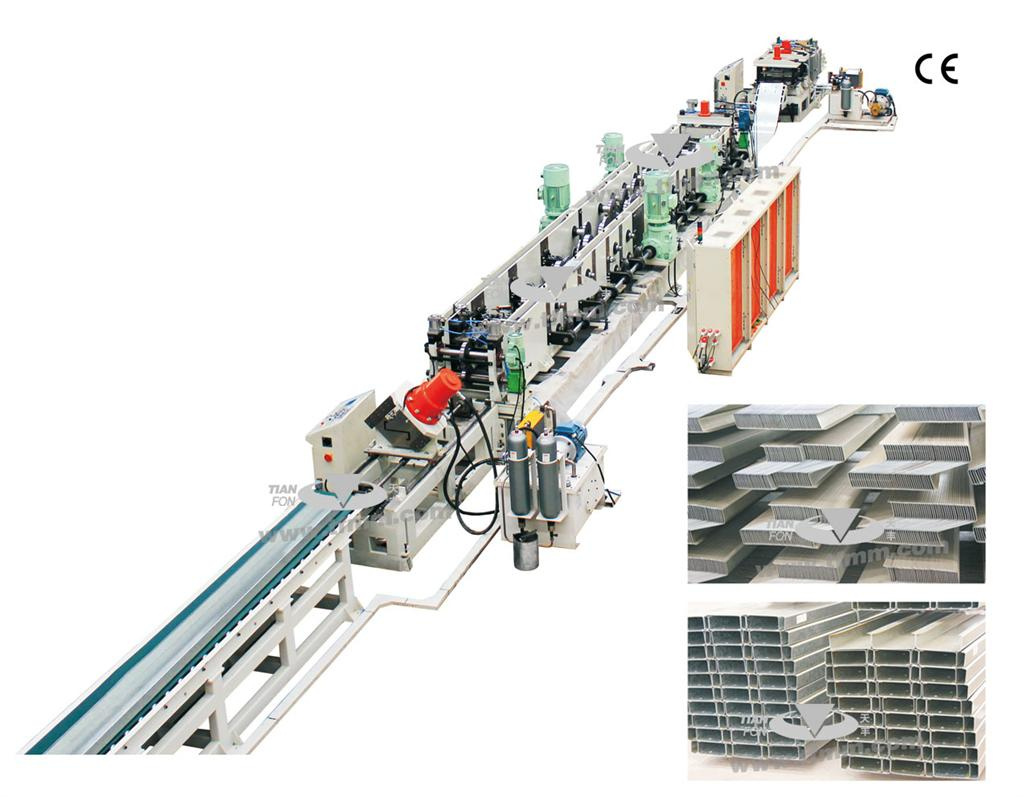

TFC&Σ (Z) purlin high speed roll forming line
TFC&Σ (Z) purlin high speed roll forming line, whose production speed can reach 40m/min (includes cutting & punching), multiple profiles can be produced through quick adjustment. PLC central control whole line, includes uncoiler, loop, leveler&feeder, puncher, pre-cutter, quick adjust roll former, servo flying cutter, stacker, discharging. HIM operates, the whole line just needs one operator, many groups data can be set by one time, automatic producing, allocated with remote control, safety light curtain etc whole security systems, which is approved by CE.
The production line is at the top level in the same filed, it adopts high speed servo feeding and high performance press, it improves production efficiency and punching precision.
MATERIAL
1. Suitable Coil Thickness 2.0mm-3.0mm
2. Suitable Raw Materials Galvanized coil, Yield bearing stress 235 MPa
MACHINE COMPONENTS
1. Hydraulic Un-coiler with coil car
2. Raft style Roll-Forming M/C
3. Hydraulic Cutting
4. PLC Control System
5. Automatic Product Rack
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
